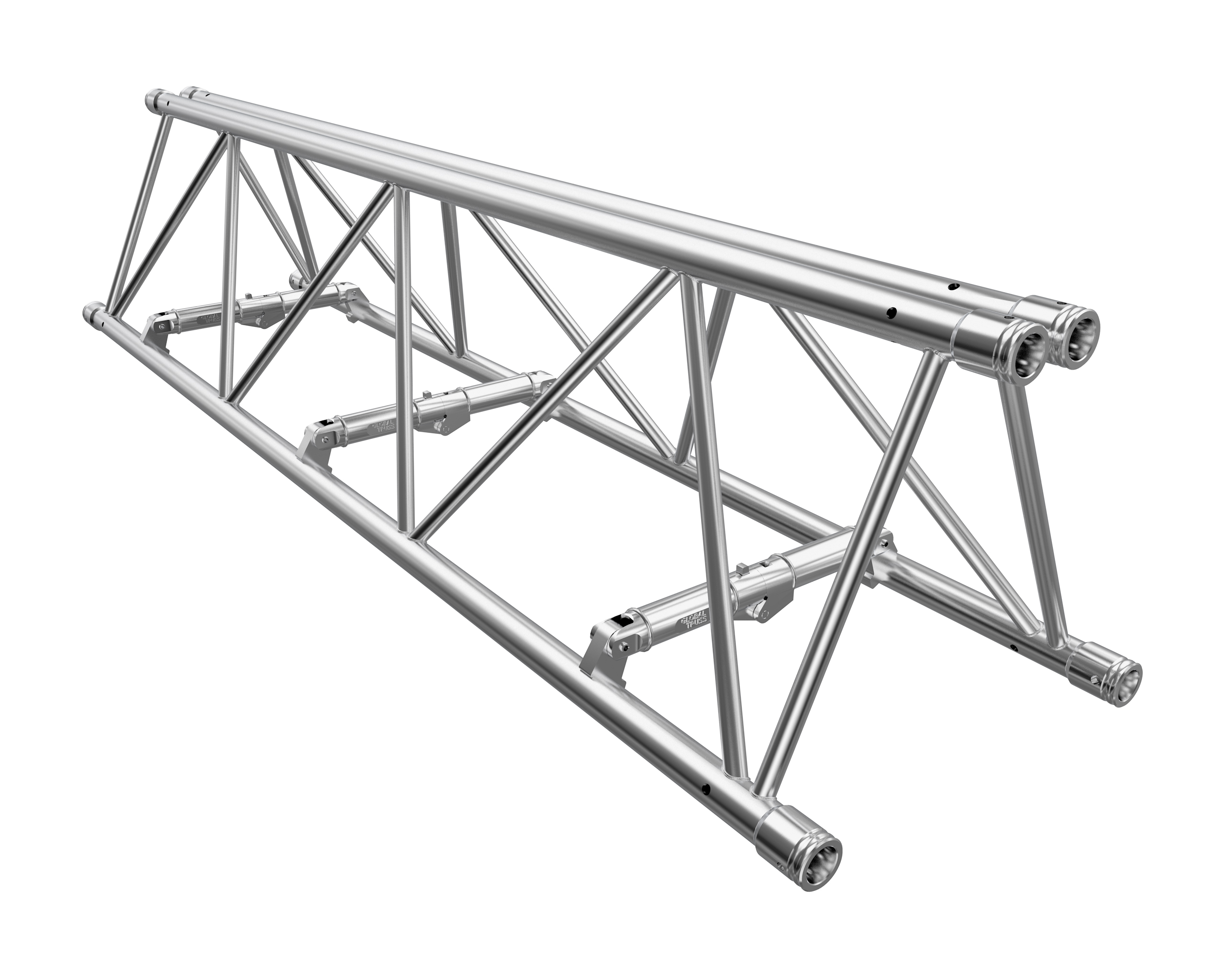

Length: 320 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical connectors includedThe F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x53 cm System F52 Type straight Truss length 320 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 3200 x 580 x 580 mm Weight 44,00 kg

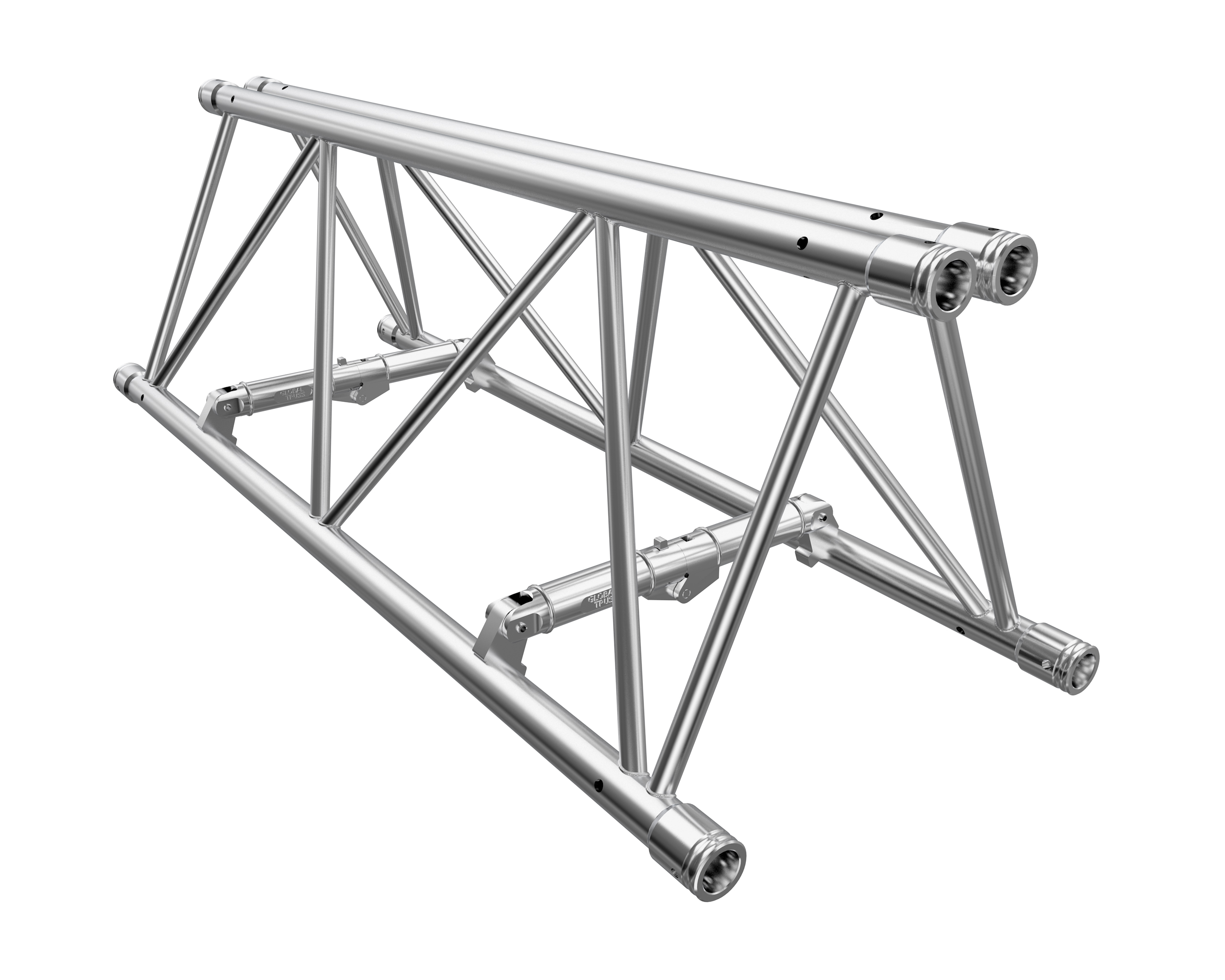

Length: 240 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical connectors included &nbsp.The F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x53 cm System F52 Type straight Truss length 240 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 2400 x 580 x 580 mm Weight 34,60 kg

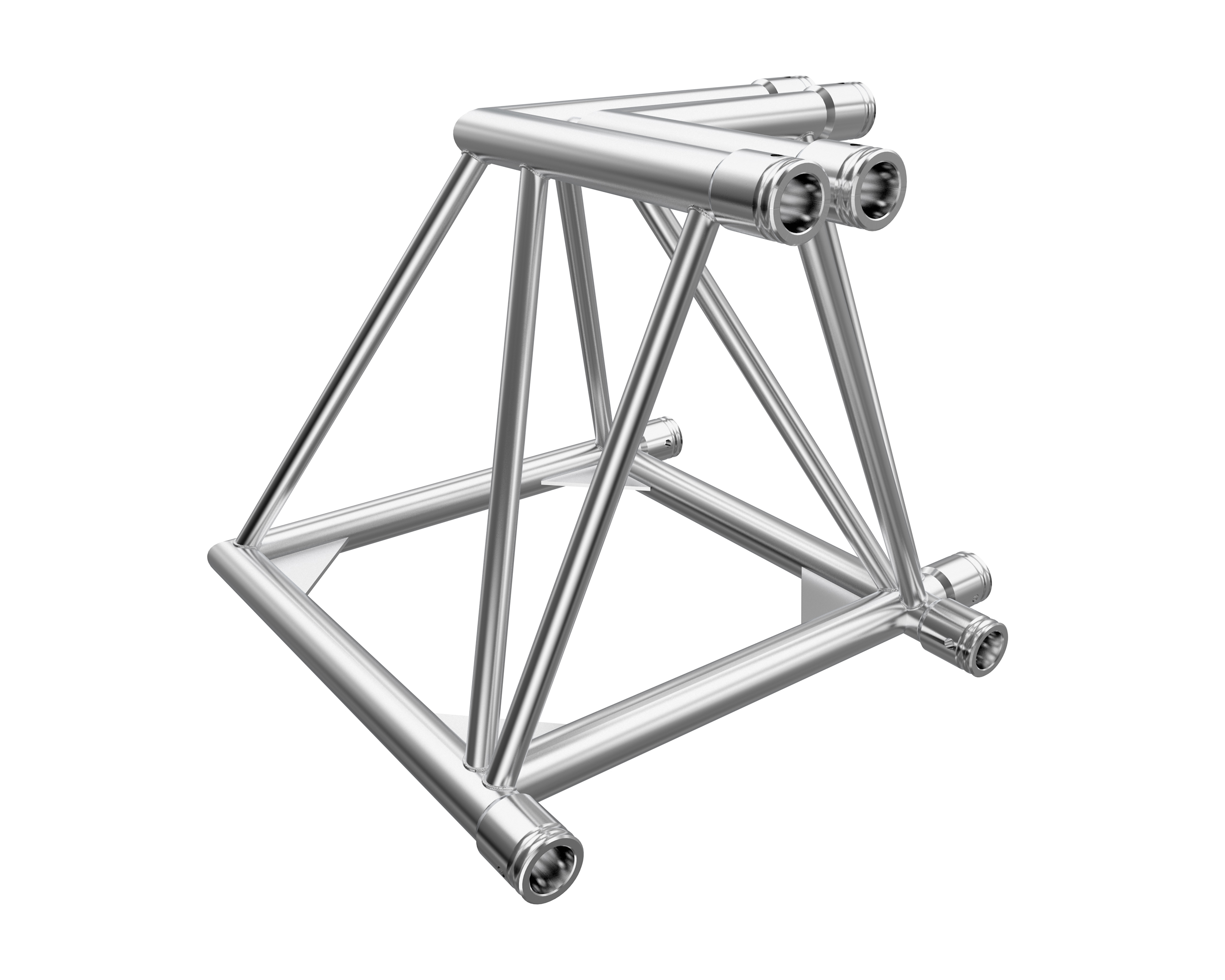

2-way corner 90° angle Pipe diameter: 50 mm Wall thickness: 4 mmThe F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x53 cm System F52 Type corner main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 655 x 655 mm Weight 14,90 kg

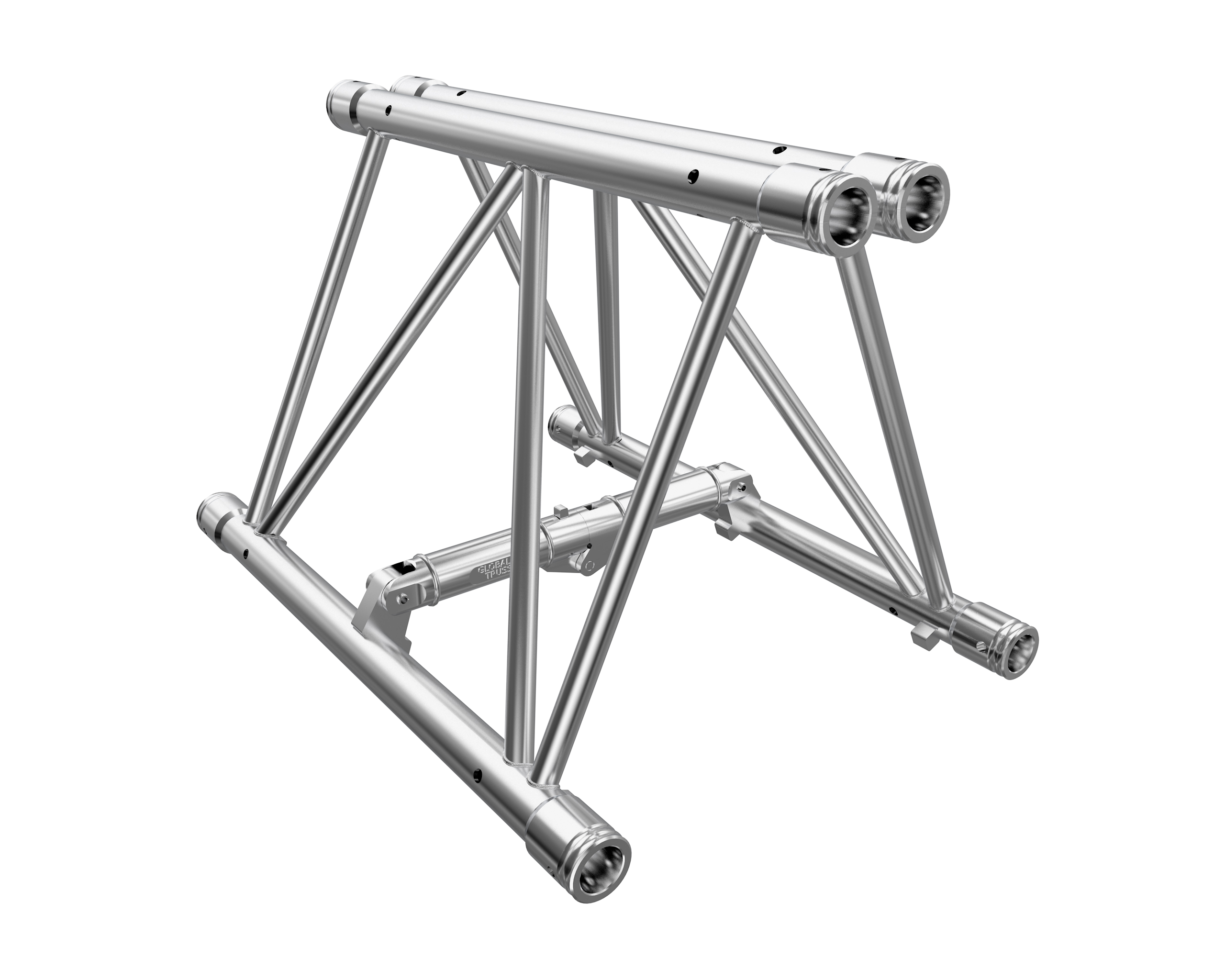

Length: 60 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical connectors includedThe F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate Yes Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x53 cm System F52 Type straight Truss length 60 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 600 x 580 x 580 mm Weight 14,70 kg

Length: 160 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical connectors includedThe F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate Yes Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x53 cm System F52 Type straight Truss length 160 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 1600 x 580 x 580 mm Weight 25,00 kg

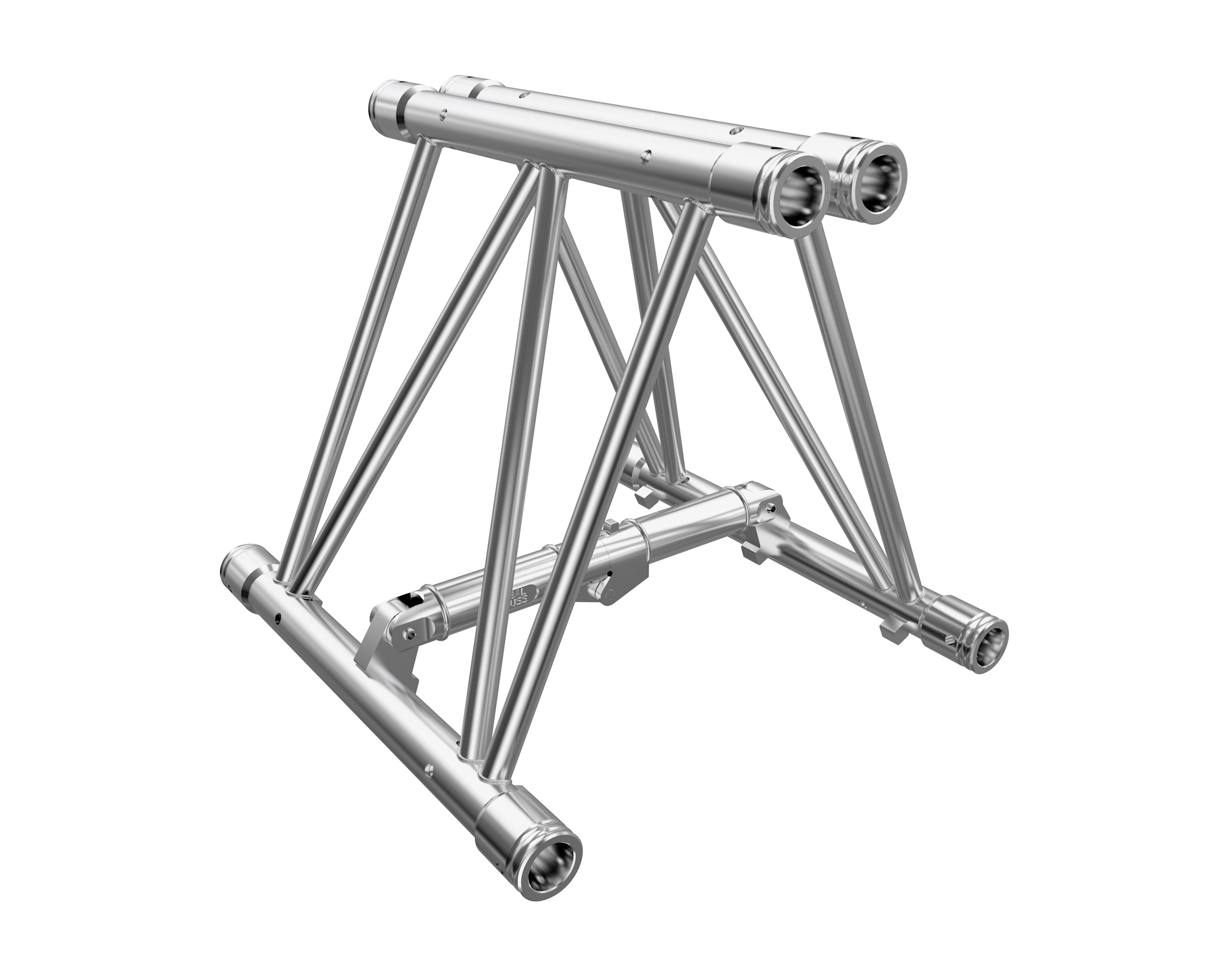

Length: 80 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical connectors includedThe F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate Yes Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x53 cm System F52 Type straight Truss length 80 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 800 x 580 x 580 mm Weight 16,00 kg

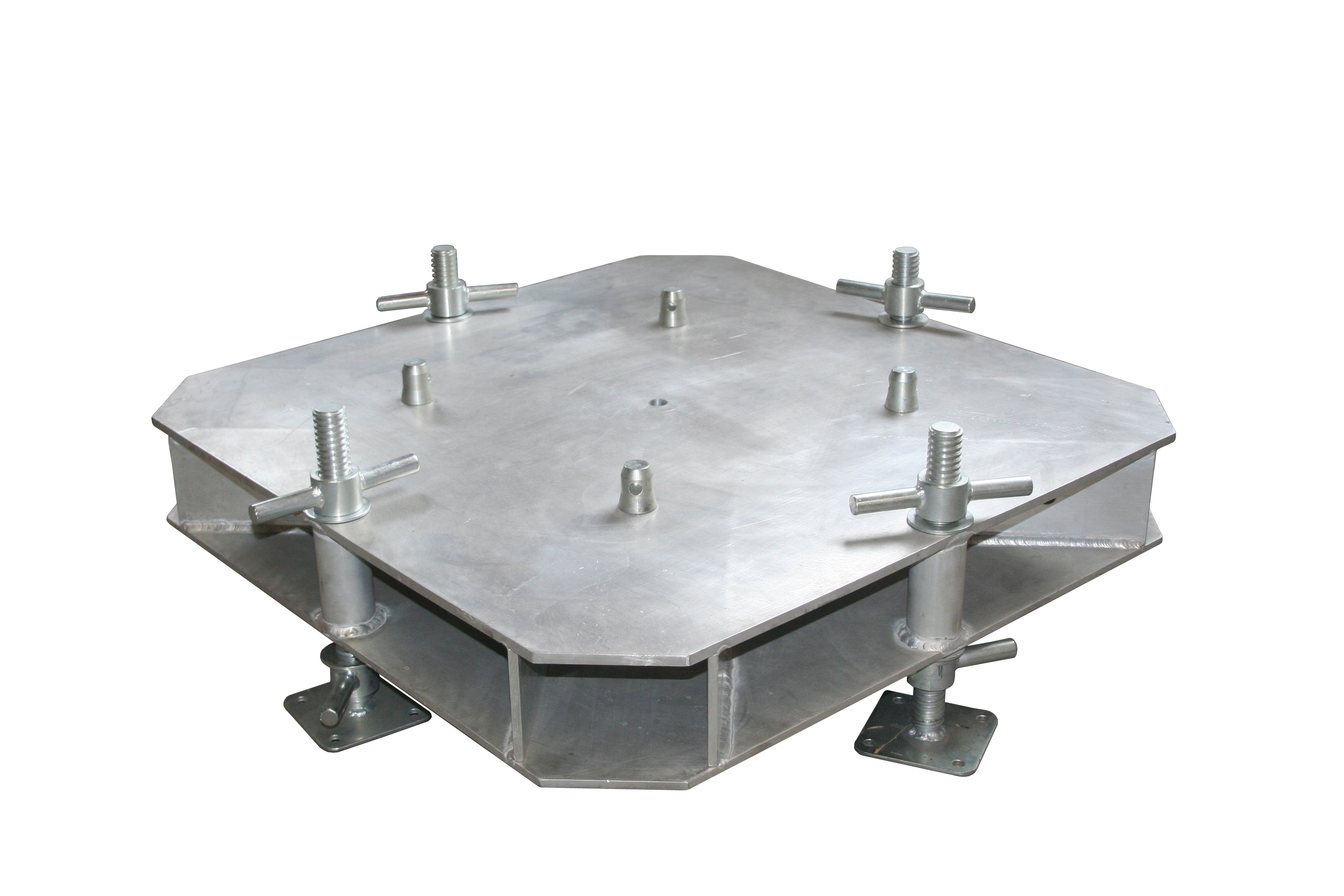

4-Punkt Bodenplatte Maße (LxB) 1000 x 1000 mm Gewicht: 65,35 kg Lieferung inklusive Halbkonusse, Bolzen und SplinteThe F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 3-point System F52 Type special part HardwareDimensions (L/W/H) 1000 x 1000 x 350 mm Weight 65,35 kg

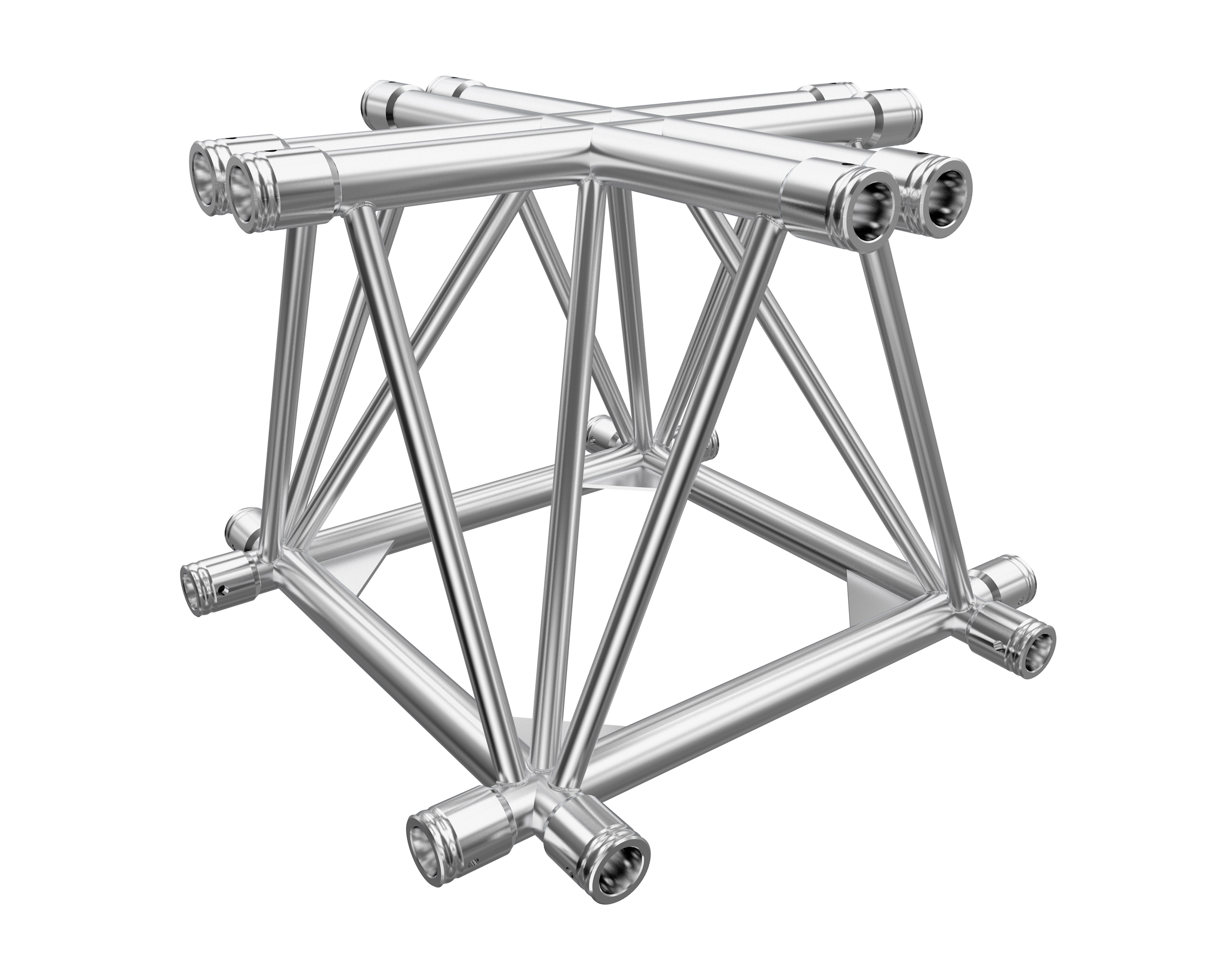

4-way corner 90° angle Pipe diameter: 50 mm Wall thickness: 4 mmThe F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system. &nbsp. The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x53 cm System F52 Type corner main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 740 x 740 mm Weight 15,70 kg
