F52 320cm
GLOBAL TRUSS
€1,267.33
% RRP: €1,354.00 (6.4% saved)per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €1,064.98
Not available, please ask for delivery time
Article number:
BF52320

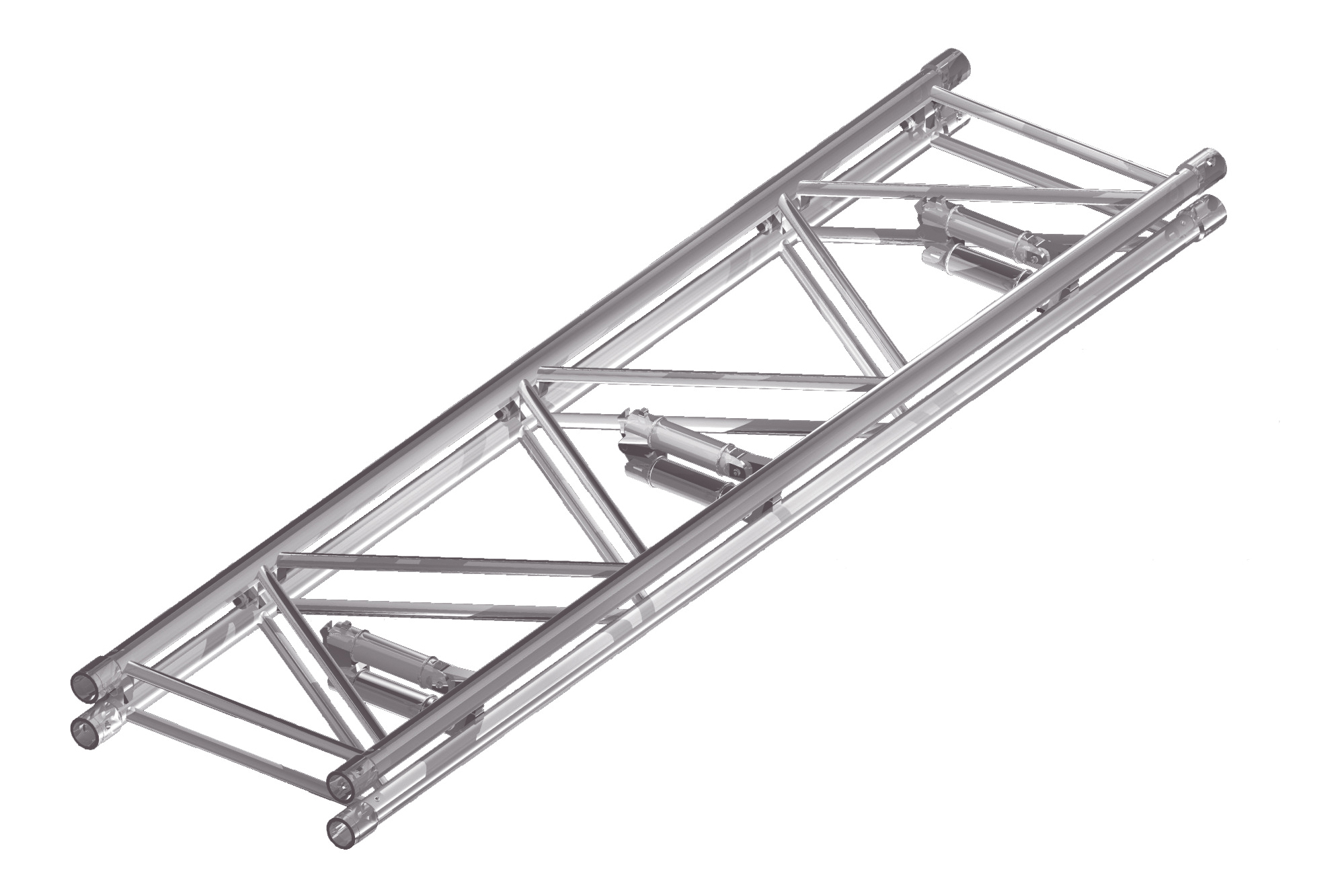

Product information "F52 320cm"
- Length: 320 cm
- Pipe diameter: 50 mm
- Wall thickness: 4 mm
- Conical connectors included
The F52 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62cm. This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 24 meters can be created with this system.
 .
The F52 truss is built with 50 x 4mm main tubes and 30 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour.
technical data
General
- Colour Aluminum
- TÜV certificate No
- Material Al EN AW-6082 T6
Technical Data
- Number of points 3-point
- Edge dimension 58x53 cm
- System F52
- Type straight
- Truss length 320 cm
main pipe
- Diameter main pipe 50 mm
- Wall thickness main pipe 4 mm
Brace
- Diameter Brace 25 mm
- Wall thickness Brace 3 mm
Hardware
- Dimensions (L/W/H) 3200 x 580 x 580 mm
- Weight 44,00 kg
