Swivel Coupler Small 32-35/30/35kg black
GLOBAL TRUSS
€33.87
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €28.46
Available, delivery time: 1-5 Werktage
The minimum order value is €119.00.
Article number:
B5038-1B

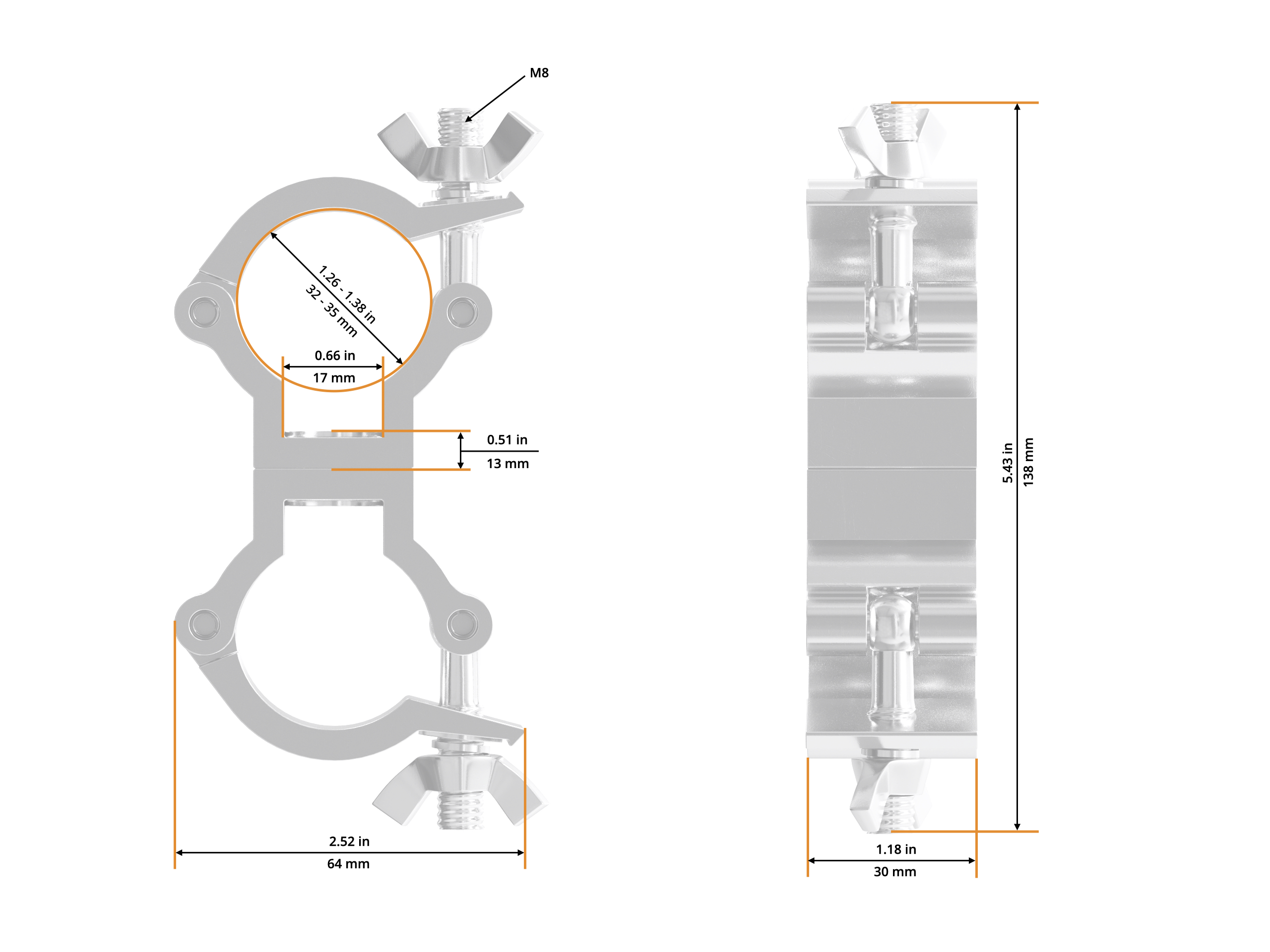

Product information "Swivel Coupler Small 32-35/30/35kg black"
- Compatibility: 32-35 mm
- Width: 30 mm
- Tensile loading: 75 kg
- TÜV Certified
This double coupler offers an easy connecting between pipes with a maximium load of 75kg. He was developed especially for truss with a pipe diameter of 32-35mm.
This coupler is compatible to following truss systems:
technical data
General
- Colour black
- Compatibility 32-35 mm
- TÜV certificate Yes
- Aproved by DIN EN 13814:2004
- Material Aluminum 6061 T6
Fittings
- Clasp M8 wing nut
- Retaining screw Aufnehmer für 32-35mm, drehbar gekoppelt durch Bolzen
Technical Data
- Wide 30 mm
- Tensile load 75,00 kg
Kompatibilität
- Yes
- Yes
- Yes
