Swivel Coupler 35-50/30/75kg
GLOBAL TRUSS
€35.02
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €29.43
Available, delivery time: 1-5 Werktage
The minimum order value is €119.00.
Article number:
B8233
Product information "Swivel Coupler 35-50/30/75kg"

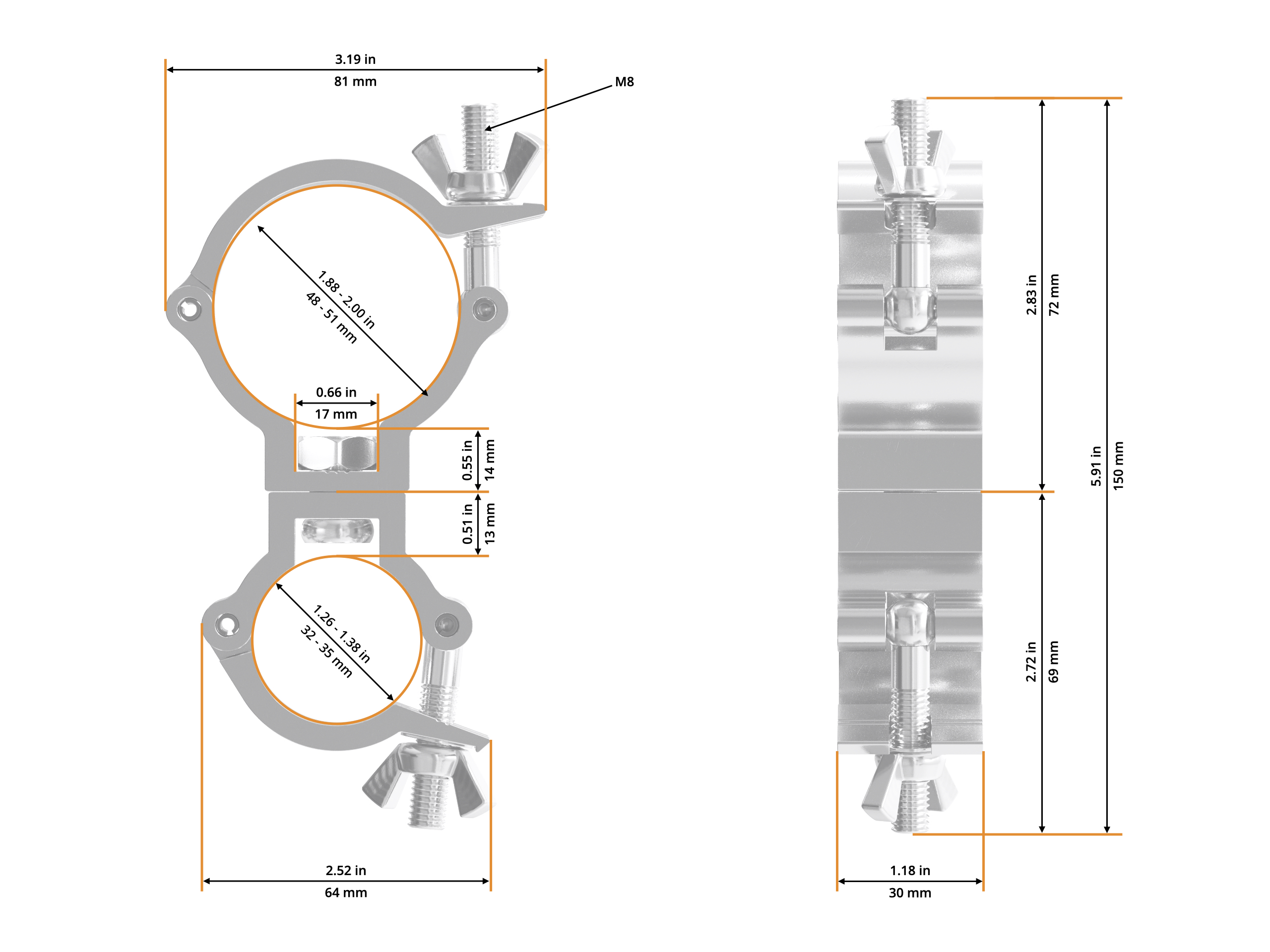

- Compatibility: 32-35 mm and 48-51 mm
- Width: 30 mm
- Tensile load: 75 kg
- TÜV Certified
This swivel coupler offers an easy connecting between pipes with a maximum load of 75kg. It was developed to connect truss systems with different main tube diameters. In this special case truss with a main tube diameter of 32 to 35 mm can be connected to truss with a main tube diameter of 48 to 51 mm.
This coupler is compatible to following truss systems:
technical data
General
- Colour Aluminum
- Compatibility 32-35 mm und 48-51 mm
- TÜV certificate No
- Aproved by DIN EN 13814:2004
- Material Aluminum 6061 T6
Fittings
- Clasp M8 wing nut
- Retaining screw drehbar gekoppelt durch Bolzen
Technical Data
- Wide 30 mm
- Tensile load 75,00 kg
