Selflock Hook Easy 48-51/30/250kg
GLOBAL TRUSS
€42.84
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €36.00
Available, delivery time: 1-5 Werktage
The minimum order value is €119.00.
Article number:
B5073-1
Product information "Selflock Hook Easy 48-51/30/250kg"

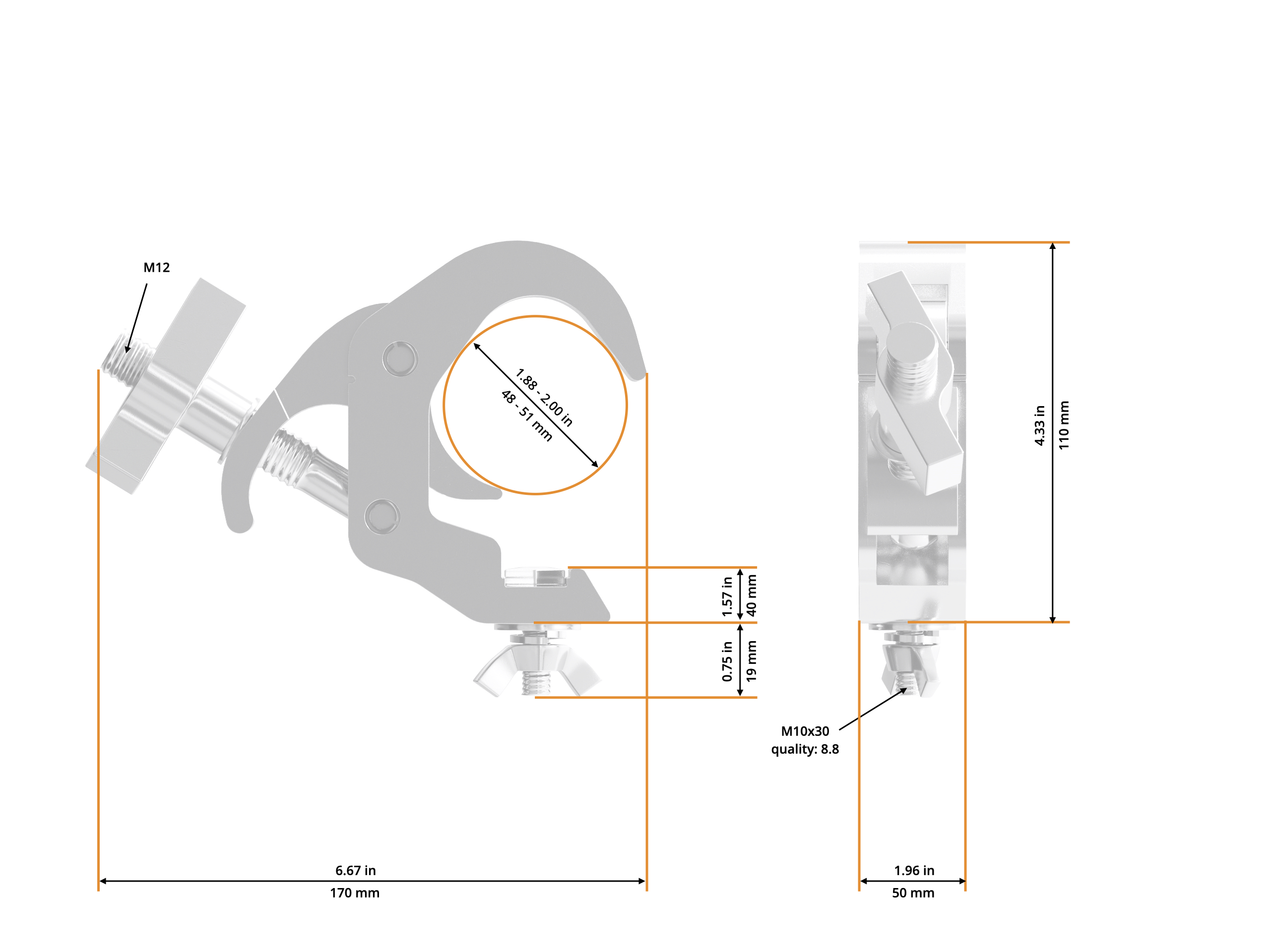

- Fast and easy fixture
- Compatibility: 48-51 mm
- Width: 30 mm
- Tensile load: 250 kg
- TÜV Certified
The Self-locking Easy hook is a fast and simple way to attach devices to a truss. The special design with lateral screw prevents it from hooking itself to the devices or to the cross beam. The large wing nut makes it easy to lock the coupler in place.
This coupler is compatible to following truss systems:
technical data
General
- Colour Aluminum
- Compatibility 48-51 mm
- TÜV certificate Yes
- Aproved by DIN EN 13814:2004
- Material Aluminum 6061 T6
Fittings
- Clasp M12 wing nut
- Retaining screw M10 device screw, snap ring, washer
Technical Data
- Wide 30 mm
- Tensile load 250,00 kg
Kompatibilität
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
