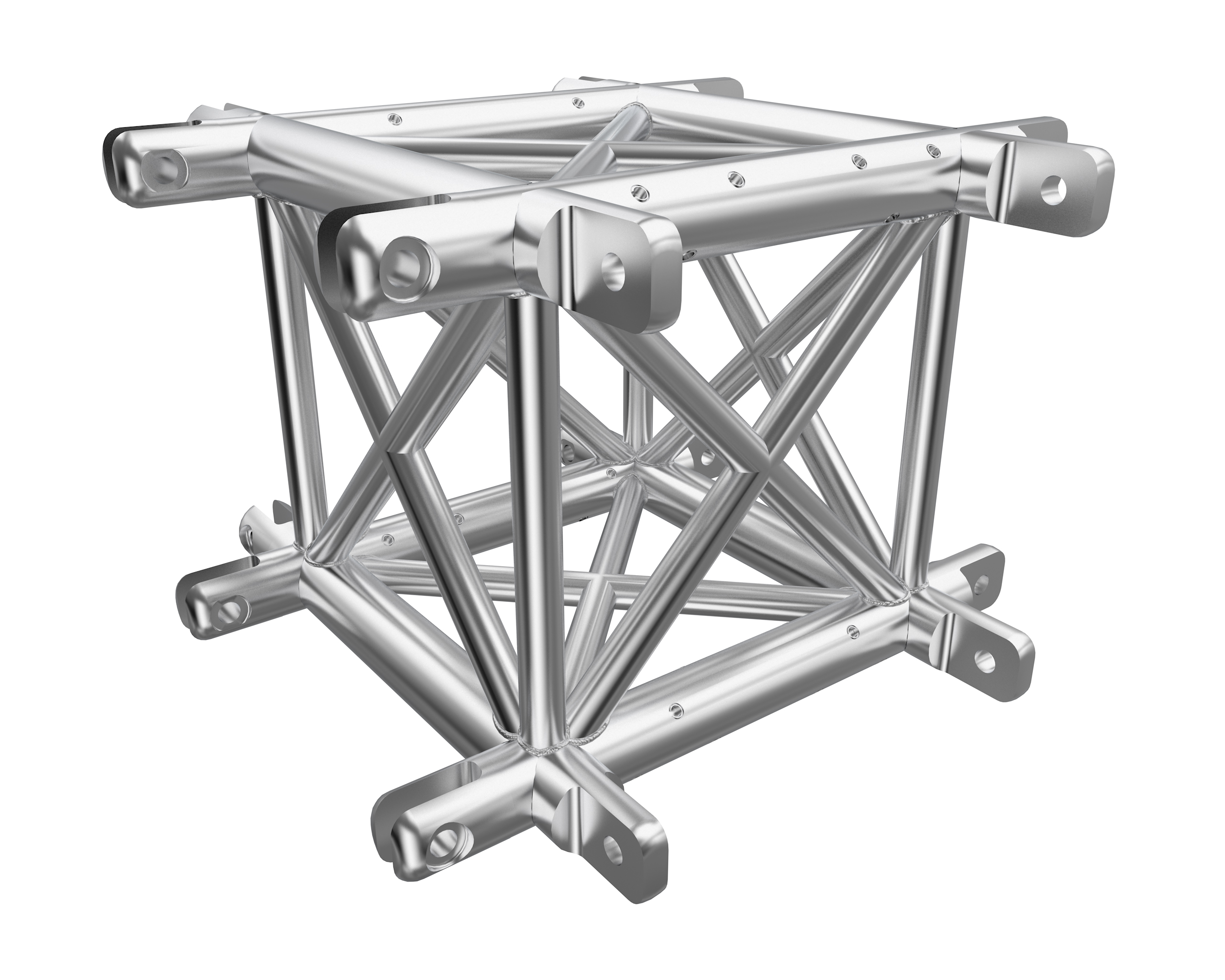

iM 6-way corner 90° angle Pipe diameter: 48 mmThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. .The iM-Type truss is made of 48x4.5mm chord tubes and 25x3mm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. .On all M-Type corner elements from Global Truss engineered by Camco, the fork connectors for the two horizontal outlets in the direction of the main support tubes are riveted in place?the connectors for the other horizontal and vertical outlets are welded on. .Now consider the corner element in such a way that, when installed horizontally, the male parts of the fork connectors point to the 12 o'clock position of an imaginary clock. .For male connectors at the 12 o'clock position, insert an M (male) in the first position after the hyphen in the type designation of the corner element. Example: MCM... If there are no connectors at the 12 o'clock position, insert a 0 instead. Example: MC-0... Now add the characters M (male), F (female) or 0 (not present) for the horizontal outlets at the 3 o'clock, 6 o'clock and 9 o'clock positions to the second, third and fourth positions after the hyphen, respectively.Example: MC-MM0F .If the corner element also has vertical outlets, indicate these in the same way after another dash in the type designation: in the first position for the downward outlet, in the second position for the upward outlet. Again, if there is no connector, use a 0 instead.Example: MC-MFFM-0F. .If a 0 is followed only by further zeros on the same level, these are omitted.Examples: MC-MF00 = MC-MF / MC-M000-F = MC-M-F technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 29,92 cm System iM-Type Type corner main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 500 x 500 x 500 mm Weight 18,00 kg

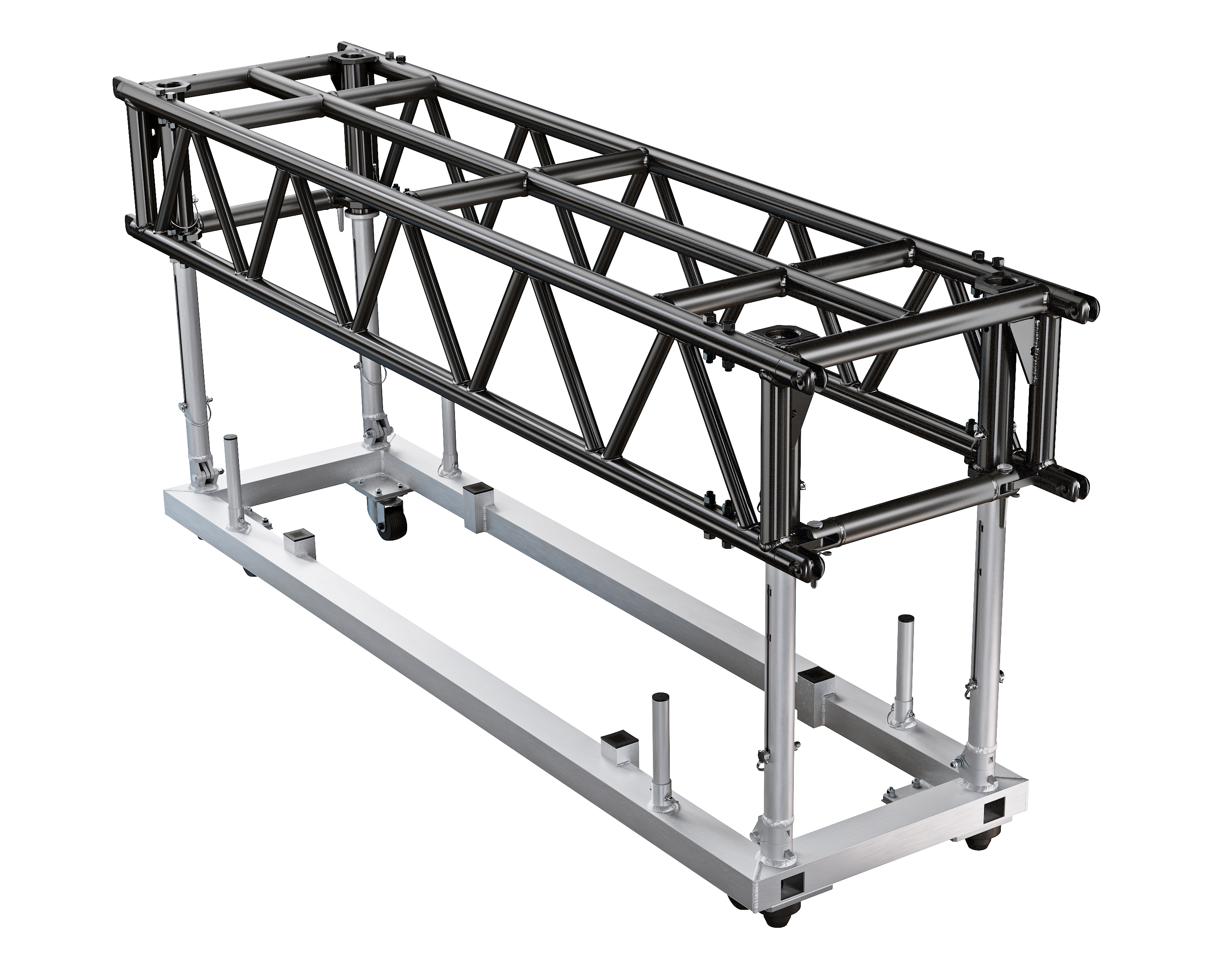

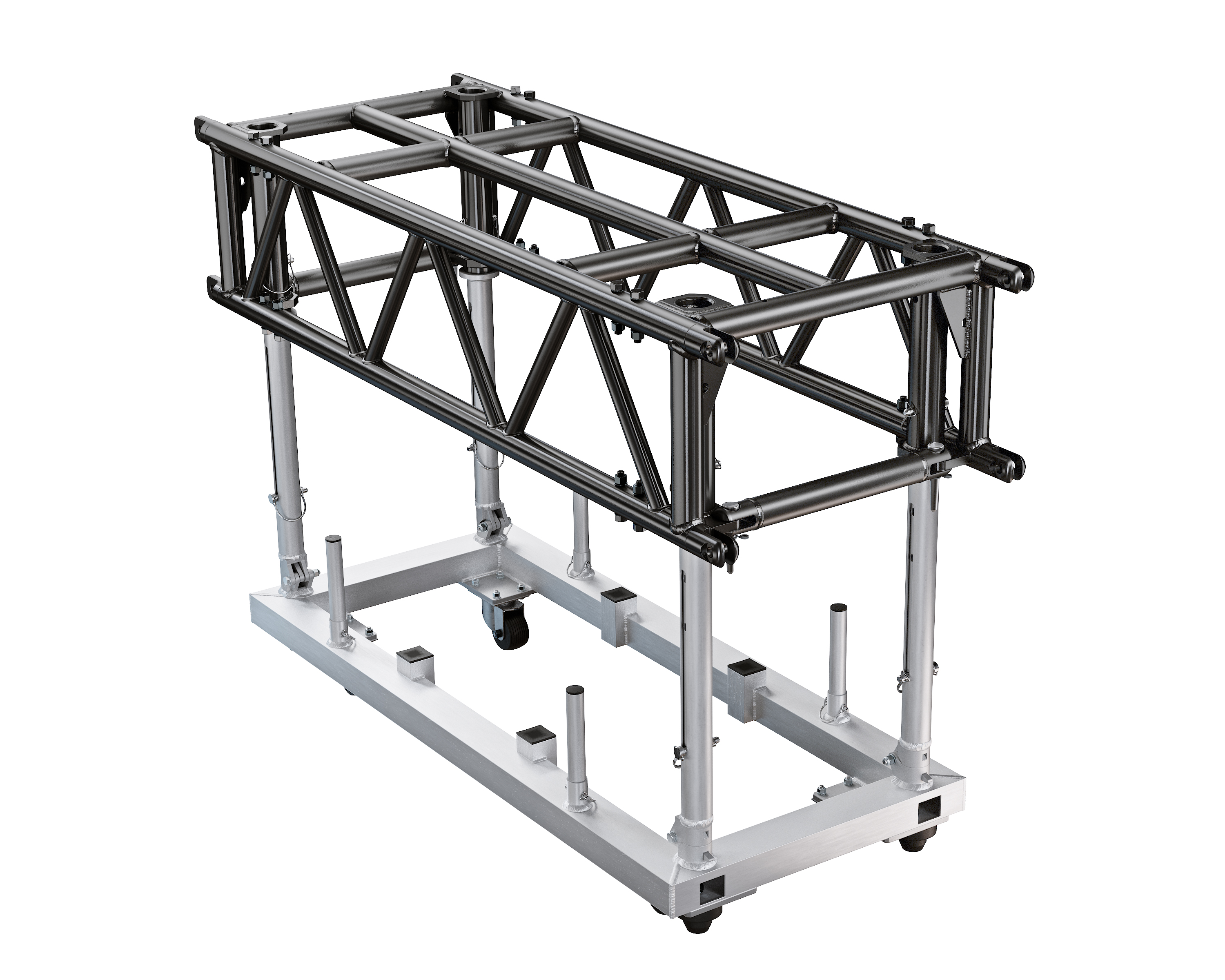

Length: 240 cm End-frame opening for LED walls 90° rotatable fork connectors Ready to use, including Dolly and connection pins Telescopic and foldable legs / StackableWith the PreRig Truss, Global Truss offers a truss system that can be pre-equipped with stage technology before the event, significantly reducing setup and teardown times.  . A special feature is the GT Gate, which can be easily removed from the truss as needed. This not only simplifies the mounting of equipment on the central chord tube, but also allows LED screens?optimally prepared for production?to be integrated into the truss. Thanks to its robust construction, the truss remains stable even over large spans and heavy loads and is also suitable for vertical installation?an added plus for flexible stage planning. The connectors of the PreRig Truss can be effortlessly rotated by 90° and, if required, replaced with optionally available screw connectors. These can be extended by up to 60 mm, making it possible to create both horizontal and vertical circles.  . For safe and efficient transport, the truss is delivered with a collapsible and stackable transport cart (Dolly). Thanks to its smart design and exceptionally robust construction, the Dolly forms the basis of the PreRig Truss. It can be folded and stacked to save space, freeing up valuable room on tour and in storage. The sturdy stacking pins can be removed in no time, creating more space to load devices into the truss from below. Equipped with smooth-running Blickle castors (Made in Germany), the Dolly can be moved effortlessly and maneuvered precisely?even on uneven surfaces. It can also be height-adjusted in three stages, ensuring safe transport at all times. The foldable Dolly is thus a reliable solution for efficient transport and storage processes.  . Additionally, optional corners, base plates, lifting aids, ?gizmos,? and other accessories offer a variety of possible applications. Whether on tours, festivals, or other events?the PreRig Truss impresses with compact packing dimensions, stackability, and optimal use of the available loading space.  . Choose maximum flexibility, high quality, quick installation, and perfect organization of your stage and event technology with the PreRig Truss from Global Truss! technical dataGeneralColour black Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 60 x 35 cm System PreRig Type straight Truss length 240 cm main pipeDiameter main pipe 48,5 mm Wall thickness main pipe 4,5 mm BraceDiameter Brace 30 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 2450 x 600 x 350 mm Weight 75,00 kg
The iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. The iM-Type truss is made of 48x4.5mm chord tubes and 25x3mm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. On all M-Type corner elements from Global Truss engineered by Camco, the fork connectors for the two horizontal outlets in the direction of the main support tubes are riveted in place?the connectors for the other horizontal and vertical outlets are welded on. Now consider the corner element in such a way that, when installed horizontally, the male parts of the fork connectors point to the 12 o'clock position of an imaginary clock. For male connectors at the 12 o'clock position, insert an M (male) in the first position after the hyphen in the type designation of the corner element. Example: MCM... If there are no connectors at the 12 o'clock position, insert a 0 instead. Example: MC-0... Now add the characters M (male), F (female) or 0 (not present) for the horizontal outlets at the 3 o'clock, 6 o'clock and 9 o'clock positions to the second, third and fourth positions after the hyphen, respectively. Example: MC-MM0F If the corner element also has vertical outlets, indicate these in the same way after another dash in the type designation: in the first position for the downward outlet, in the second position for the upward outlet. Again, if there is no connector, use a 0 instead. Example: MC-MFFM-0F. If a 0 is followed only by further zeros on the same level, these are omitted. Examples: MC-MF00 = MC-MF / MC-M000-F = MC-M-F
Length: 120cm Pipe diameter: 48 mm Extraordinary high durableThe iL-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 62 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications with high loads. This truss system is designed for spans of up to 30 m. The iL-Type truss is made of 48x4.5 cm chord tubes and 25x3 cm or 32x3 cm aluminum bracings. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 56,92 cm System iL-Type Type straight Truss length 120 cm main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 1260 x 630 x 640 mm Weight 24,02 kg
Lieferung inkl. Halbkonusse Viele Einsatzmöglichkeiten
3-way corner Pipe diameter: 48 mm Extraordinary high durableThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. .The iM-Type truss is made of 48x4mm chord tubes and 25x3mm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. .On all M-Type corner elements from Global Truss engineered by Camco, the fork connectors for the two horizontal outlets in the direction of the main support tubes are riveted in place?the connectors for the other horizontal and vertical outlets are welded on. .Now consider the corner element in such a way that, when installed horizontally, the male parts of the fork connectors point to the 12 o'clock position of an imaginary clock. .For male connectors at the 12 o'clock position, insert an M (male) in the first position after the hyphen in the type designation of the corner element. Example: MCM... If there are no connectors at the 12 o'clock position, insert a 0 instead. Example: MC-0... Now add the characters M (male), F (female) or 0 (not present) for the horizontal outlets at the 3 o'clock, 6 o'clock and 9 o'clock positions to the second, third and fourth positions after the hyphen, respectively.Example: MC-MM0F .If the corner element also has vertical outlets, indicate these in the same way after another dash in the type designation: in the first position for the downward outlet, in the second position for the upward outlet. Again, if there is no connector, use a 0 instead.Example: MC-MFFM-0F. .If a 0 is followed only by further zeros on the same level, these are omitted.Examples: MC-MF00 = MC-MF / MC-M000-F = MC-M-F technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 56,92 cm System iL-Type Type corner main pipeDiameter main pipe 48 mm

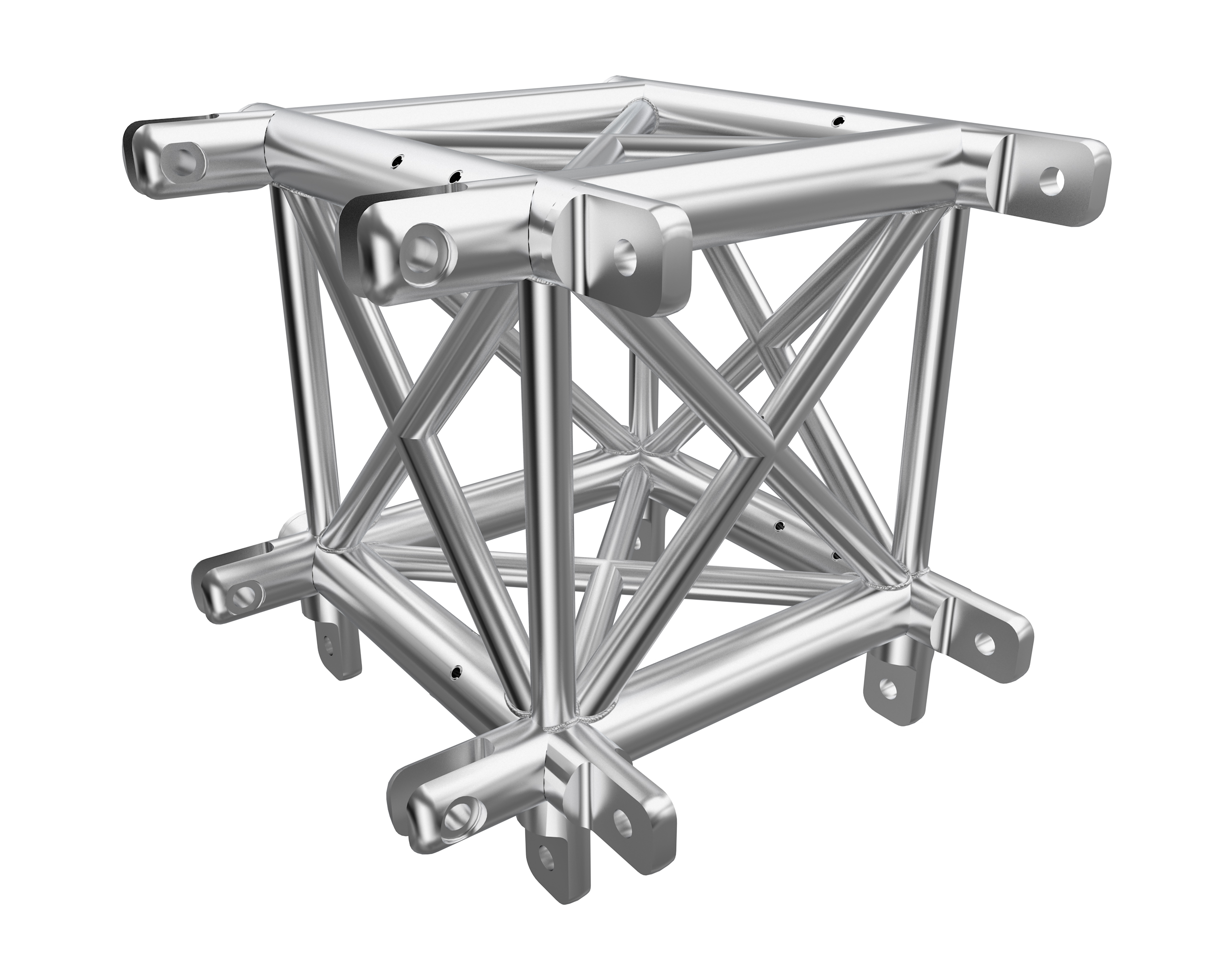

iM 4-way corner 90° angle Pipe diameter: 48 mmThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. .The iM-Type truss is made of 48x4.5mm chord tubes and 25x3mm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. .On all M-Type corner elements from Global Truss engineered by Camco, the fork connectors for the two horizontal outlets in the direction of the main support tubes are riveted in place?the connectors for the other horizontal and vertical outlets are welded on. .Now consider the corner element in such a way that, when installed horizontally, the male parts of the fork connectors point to the 12 o'clock position of an imaginary clock. .For male connectors at the 12 o'clock position, insert an M (male) in the first position after the hyphen in the type designation of the corner element. Example: MCM... If there are no connectors at the 12 o'clock position, insert a 0 instead. Example: MC-0... Now add the characters M (male), F (female) or 0 (not present) for the horizontal outlets at the 3 o'clock, 6 o'clock and 9 o'clock positions to the second, third and fourth positions after the hyphen, respectively.Example: MC-MM0F .If the corner element also has vertical outlets, indicate these in the same way after another dash in the type designation: in the first position for the downward outlet, in the second position for the upward outlet. Again, if there is no connector, use a 0 instead.Example: MC-MFFM-0F. .If a 0 is followed only by further zeros on the same level, these are omitted.Examples: MC-MF00 = MC-MF / MC-M000-F = MC-M-F technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 29,92 cm System iM-Type Type corner main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 500 x 500 x 350 mm Weight 13,42 kg
Delivery includes half-coupler, bolts and pins

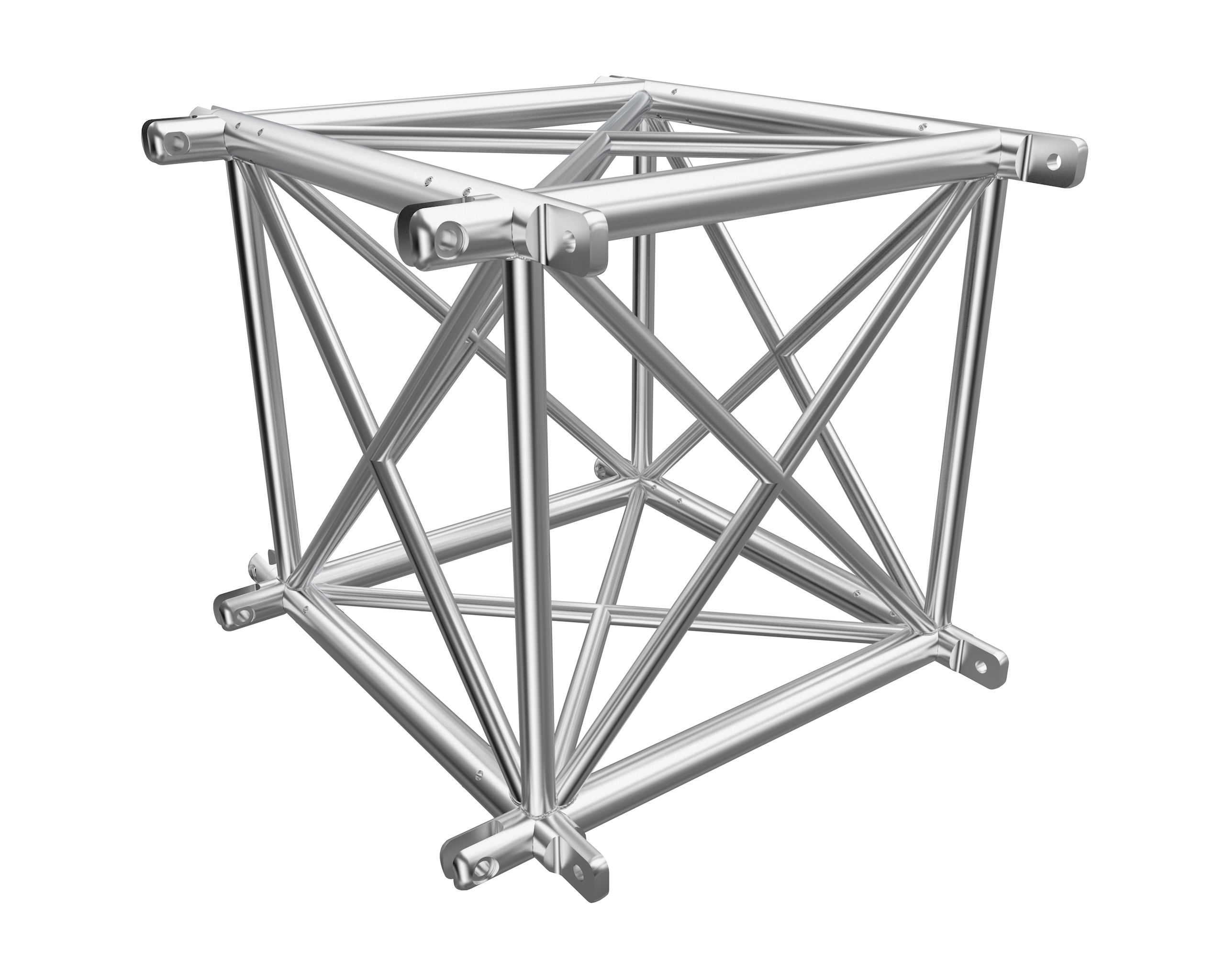

4-way corner Pipe diameter: 48 mm Extraordinary high durableThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. .The iM-Type truss is made of 48x4mm chord tubes and 25x3mm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. .On all M-Type corner elements from Global Truss engineered by Camco, the fork connectors for the two horizontal outlets in the direction of the main support tubes are riveted in place?the connectors for the other horizontal and vertical outlets are welded on. .Now consider the corner element in such a way that, when installed horizontally, the male parts of the fork connectors point to the 12 o'clock position of an imaginary clock. .For male connectors at the 12 o'clock position, insert an M (male) in the first position after the hyphen in the type designation of the corner element. Example: MCM... If there are no connectors at the 12 o'clock position, insert a 0 instead. Example: MC-0... Now add the characters M (male), F (female) or 0 (not present) for the horizontal outlets at the 3 o'clock, 6 o'clock and 9 o'clock positions to the second, third and fourth positions after the hyphen, respectively.Example: MC-MM0F .If the corner element also has vertical outlets, indicate these in the same way after another dash in the type designation: in the first position for the downward outlet, in the second position for the upward outlet. Again, if there is no connector, use a 0 instead.Example: MC-MFFM-0F. .If a 0 is followed only by further zeros on the same level, these are omitted.Examples: MC-MF00 = MC-MF / MC-M000-F = MC-M-F technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 56,92 cm System iL-Type Type corner main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 770 x 780 x 640 mm Weight 25,65 kg

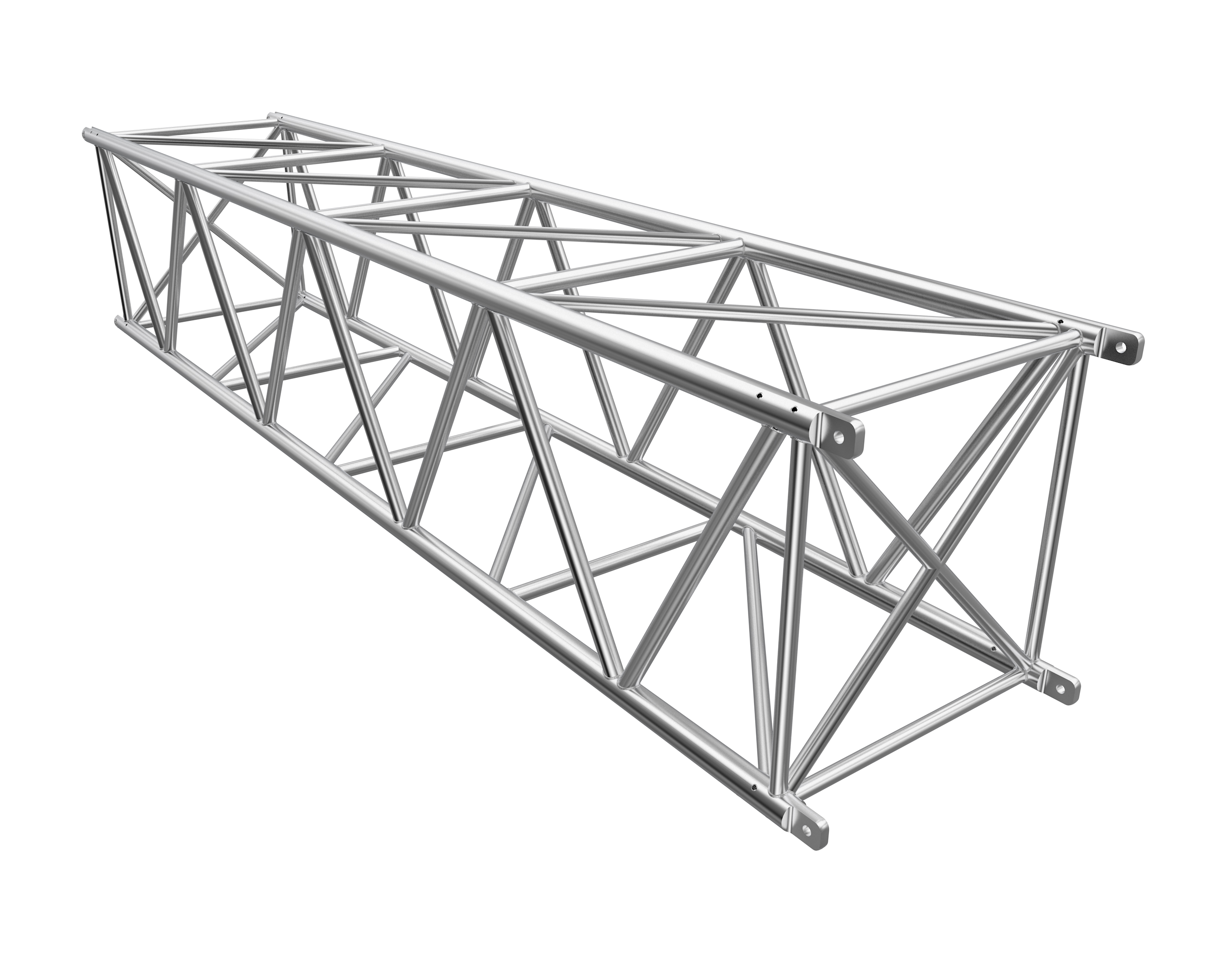

Length: 300cm Pipe diameter: 48 mm Extraordinary high durableThe iL-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 62 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications with high loads. This truss system is designed for spans of up to 30 m. The iL-Type truss is made of 48x4.5 cm chord tubes and 25x3 cm or 32x3 cm aluminum bracings. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 56,92 cm System iL-Type Type straight Truss length 300 cm main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 3060 x 625 x 625 mm Weight 45,86 kg

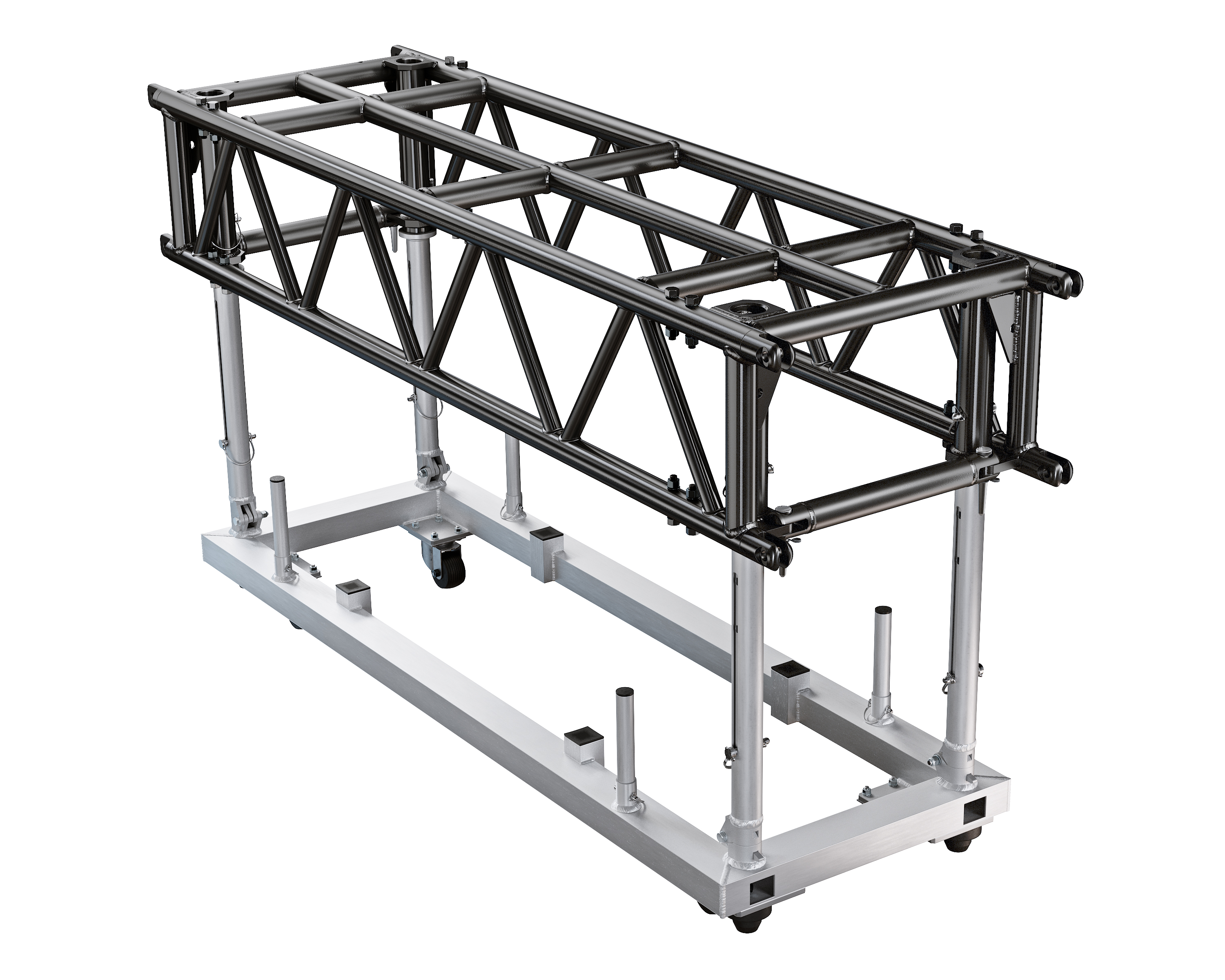

Length: 200 cm End-frame opening for LED walls 90° rotatable fork connectors Ready to use, including Dolly and connection pins Telescopic and foldable legs / StackableWith the PreRig Truss, Global Truss offers a truss system that can be pre-equipped with stage technology before the event, significantly reducing setup and teardown times.  . A special feature is the GT Gate, which can be easily removed from the truss as needed. This not only simplifies the mounting of equipment on the central chord tube, but also allows LED screens?optimally prepared for production?to be integrated into the truss. Thanks to its robust construction, the truss remains stable even over large spans and heavy loads and is also suitable for vertical installation?an added plus for flexible stage planning. The connectors of the PreRig Truss can be effortlessly rotated by 90° and, if required, replaced with optionally available screw connectors. These can be extended by up to 60 mm, making it possible to create both horizontal and vertical circles.  . For safe and efficient transport, the truss is delivered with a collapsible and stackable transport cart (Dolly). Thanks to its smart design and exceptionally robust construction, the Dolly forms the basis of the PreRig Truss. It can be folded and stacked to save space, freeing up valuable room on tour and in storage. The sturdy stacking pins can be removed in no time, creating more space to load devices into the truss from below. Equipped with smooth-running Blickle castors (Made in Germany), the Dolly can be moved effortlessly and maneuvered precisely?even on uneven surfaces. It can also be height-adjusted in three stages, ensuring safe transport at all times. The foldable Dolly is thus a reliable solution for efficient transport and storage processes.  . Additionally, optional corners, base plates, lifting aids, ?gizmos,? and other accessories offer a variety of possible applications. Whether on tours, festivals, or other events?the PreRig Truss impresses with compact packing dimensions, stackability, and optimal use of the available loading space.  . Choose maximum flexibility, high quality, quick installation, and perfect organization of your stage and event technology with the PreRig Truss from Global Truss! technical dataGeneralColour black Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 60 x 35 cm System PreRig Type straight Truss length 200 cm main pipeDiameter main pipe 48,5 mm Wall thickness main pipe 4,5 mm BraceDiameter Brace 30 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 2050 x 600 x 350 mm Weight 64,50 kg
iM 3-way corner 90° angle Pipe diameter: 48 mmThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. .The iM-Type truss is made of 48x4.5mm chord tubes and 25x3mm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. .On all M-Type corner elements from Global Truss engineered by Camco, the fork connectors for the two horizontal outlets in the direction of the main support tubes are riveted in place?the connectors for the other horizontal and vertical outlets are welded on. .Now consider the corner element in such a way that, when installed horizontally, the male parts of the fork connectors point to the 12 o'clock position of an imaginary clock. .For male connectors at the 12 o'clock position, insert an M (male) in the first position after the hyphen in the type designation of the corner element. Example: MCM... If there are no connectors at the 12 o'clock position, insert a 0 instead. Example: MC-0... Now add the characters M (male), F (female) or 0 (not present) for the horizontal outlets at the 3 o'clock, 6 o'clock and 9 o'clock positions to the second, third and fourth positions after the hyphen, respectively.Example: MC-MM0F .If the corner element also has vertical outlets, indicate these in the same way after another dash in the type designation: in the first position for the downward outlet, in the second position for the upward outlet. Again, if there is no connector, use a 0 instead.Example: MC-MFFM-0F. .If a 0 is followed only by further zeros on the same level, these are omitted.Examples: MC-MF00 = MC-MF / MC-M000-F = MC-M-F technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 29,92 cm System iM-Type Type corner main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 440 x 425 x 425 mm Weight 12,73 kg
Length: 160 cm End-frame opening for LED walls 90° rotatable fork connectors Ready to use, including Dolly and connection pins Telescopic and foldable legs / StackableWith the PreRig Truss, Global Truss offers a truss system that can be pre-equipped with stage technology before the event, significantly reducing setup and teardown times.  . A special feature is the GT Gate, which can be easily removed from the truss as needed. This not only simplifies the mounting of equipment on the central chord tube, but also allows LED screens?optimally prepared for production?to be integrated into the truss. Thanks to its robust construction, the truss remains stable even over large spans and heavy loads and is also suitable for vertical installation?an added plus for flexible stage planning. The connectors of the PreRig Truss can be effortlessly rotated by 90° and, if required, replaced with optionally available screw connectors. These can be extended by up to 60 mm, making it possible to create both horizontal and vertical circles.  . For safe and efficient transport, the truss is delivered with a collapsible and stackable transport cart (Dolly). Thanks to its smart design and exceptionally robust construction, the Dolly forms the basis of the PreRig Truss. It can be folded and stacked to save space, freeing up valuable room on tour and in storage. The sturdy stacking pins can be removed in no time, creating more space to load devices into the truss from below. Equipped with smooth-running Blickle castors (Made in Germany), the Dolly can be moved effortlessly and maneuvered precisely?even on uneven surfaces. It can also be height-adjusted in three stages, ensuring safe transport at all times. The foldable Dolly is thus a reliable solution for efficient transport and storage processes.  . Additionally, optional corners, base plates, lifting aids, ?gizmos,? and other accessories offer a variety of possible applications. Whether on tours, festivals, or other events?the PreRig Truss impresses with compact packing dimensions, stackability, and optimal use of the available loading space.  . Choose maximum flexibility, high quality, quick installation, and perfect organization of your stage and event technology with the PreRig Truss from Global Truss! technical dataGeneralColour black Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 60 x 35 cm System PreRig Type straight Truss length 160 cm main pipeDiameter main pipe 48,5 mm Wall thickness main pipe 4,5 mm BraceDiameter Brace 30 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 1650 x 600 x 350 mm

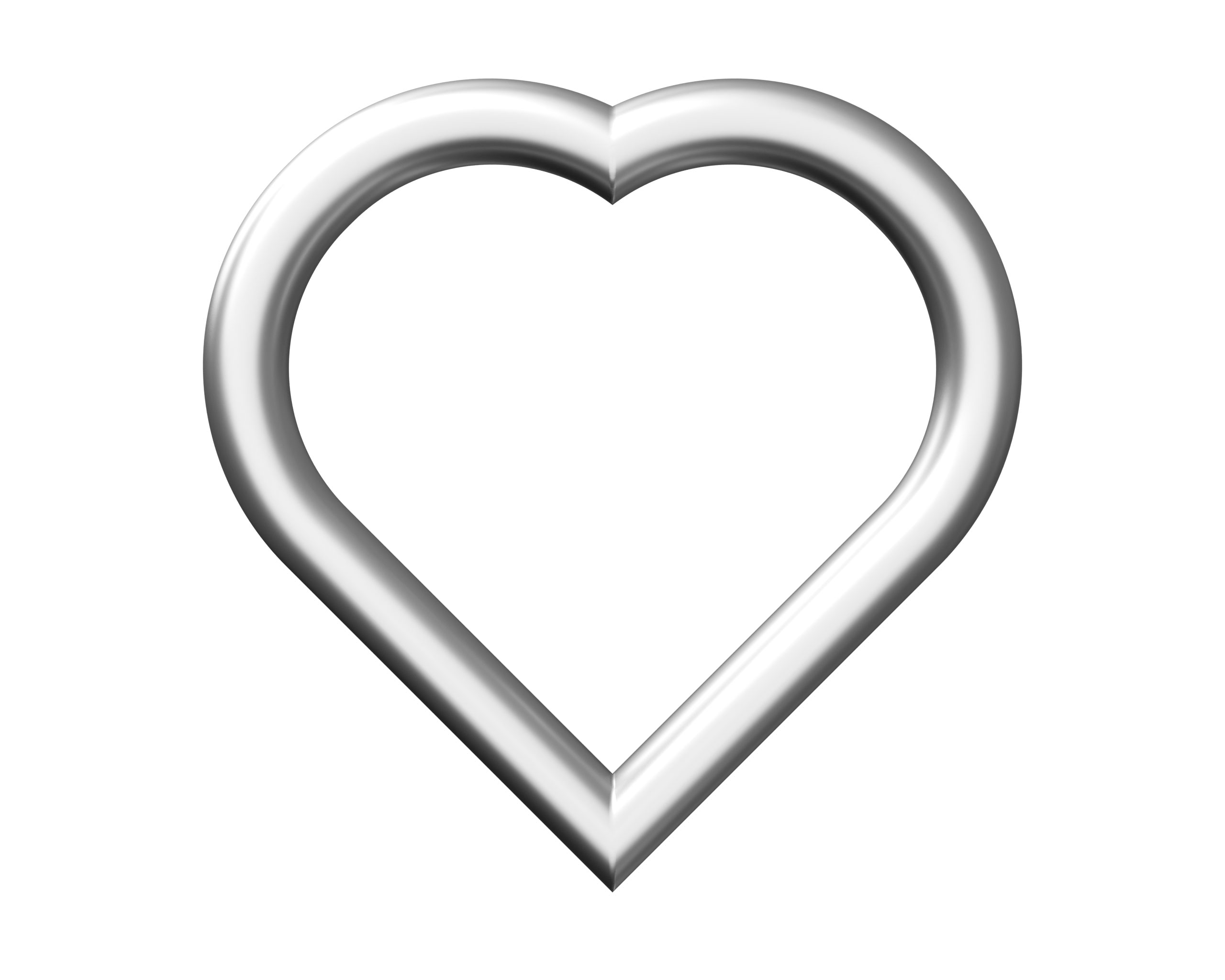

Tube diameter: 48-51 mm material: Aluminium 6061 T6 Dimension: 50 x 50 x 5 cmThe Heart 50 is a 50 mm truss tube in the shape of a heart and a size of 50 x 50 cm. It can be mounted with two couplers on the 4-point truss.

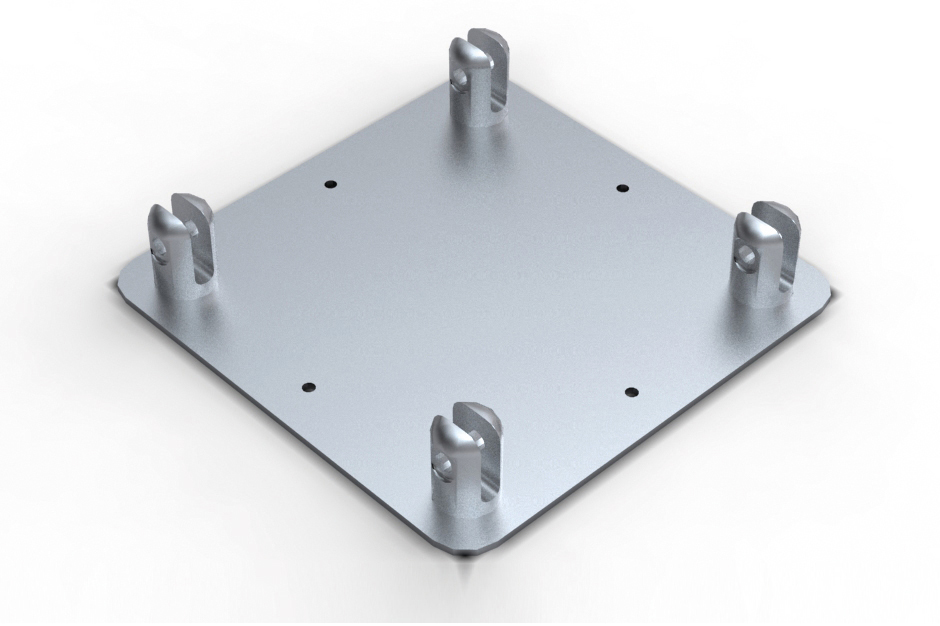

4-Punkt Bodenplatte Maße (LxB) 350 x 350 mm Gewicht: 1,50 kg Lieferung inklusive HalbkonusseThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m.  . The iM-Type truss is made of 48x4.5 cm chord tubes and 25x3 cm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 29,92 cm System iM-Type HardwareDimensions (L/W/H) 350 x 350 x 50 mm Weight 1,50 kg

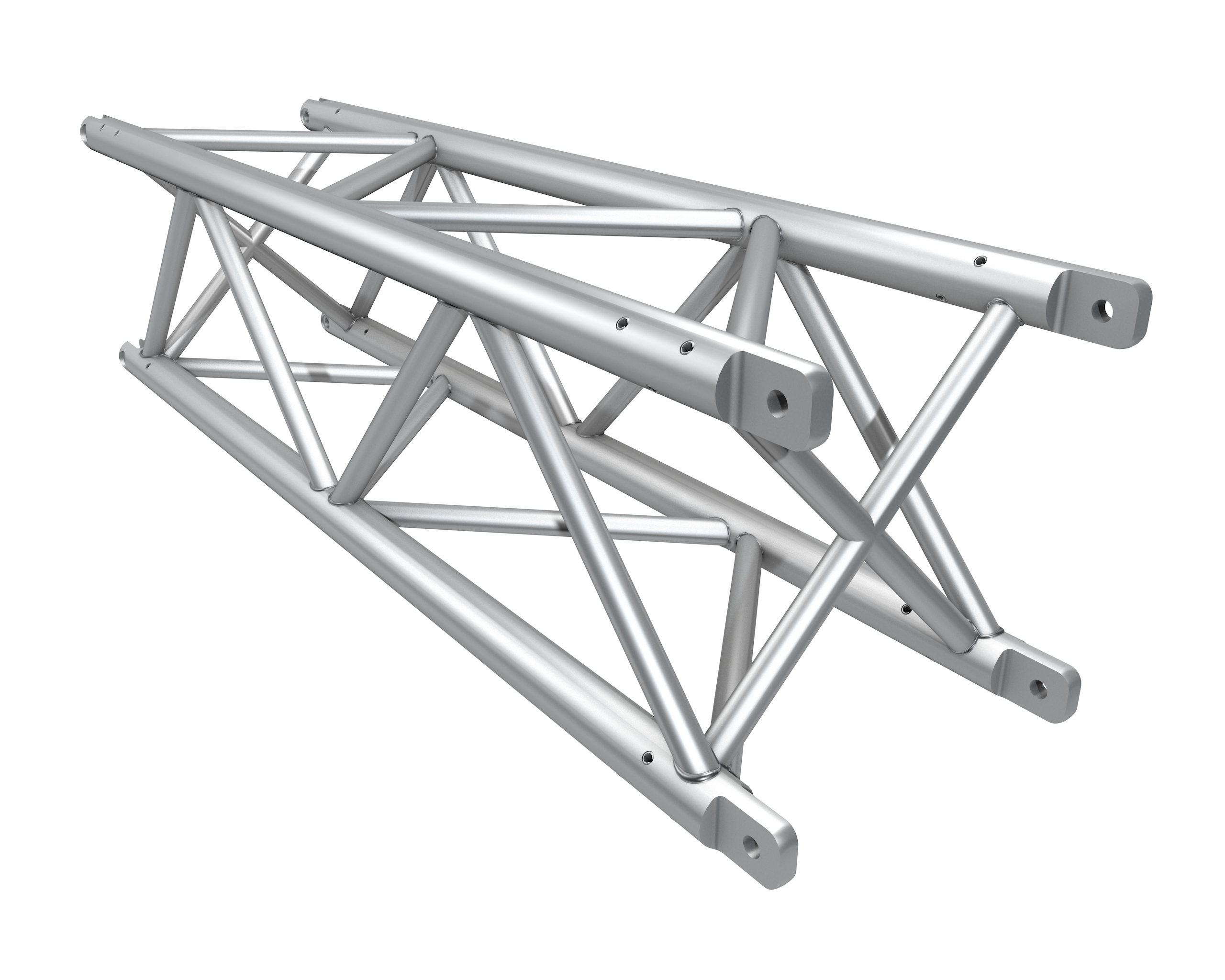

Length: 124,30 cm Pipe diameter: 48 mm Extraordinary high durableThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. .The iM-Type truss is made of 48x4.5 cm chord tubes and 25x3 cm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 29,92 cm System iM-Type Type straight Truss length 124,3 cm main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 1243 x 299,2 x 299,2 mm Weight 17,63 kg

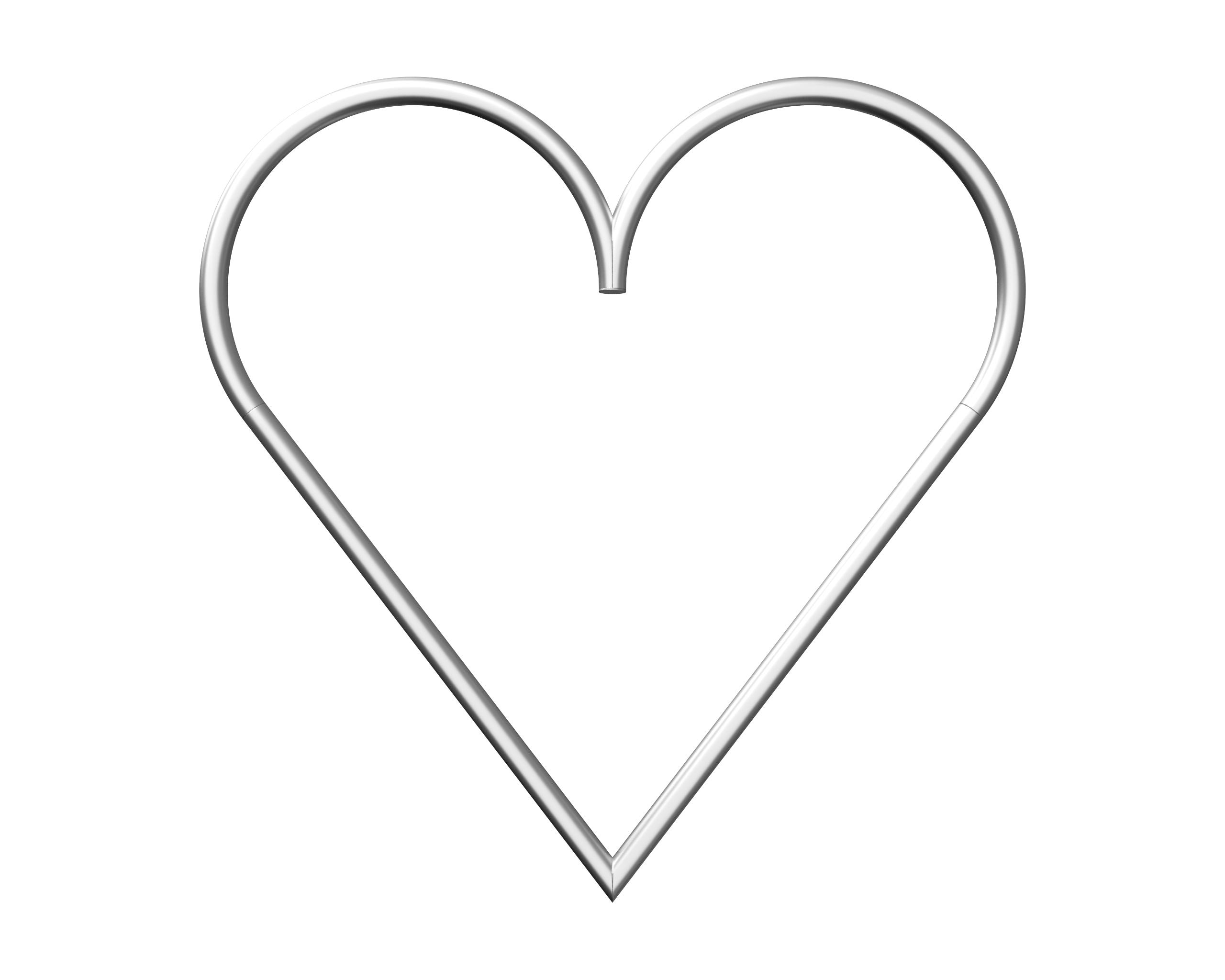

Tube diameter: 48-51 mm material: Aluminium 6061 T6 Dimension: 150 x 150 x 5 cmThe Heart 150 is a 50 mm truss tube in the shape of a heart and a size of 150 x 150 cm. It can be mounted with two couplers on the 4-point truss.
Length: 60 cm Pipe diameter: 50 mm Wall thickness: 4 mm TÜV Certified Conical connectors includedThe F102 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 62 x 100cm. This foldable truss system was built for mobile use with large spans and extreme loads. When folded the transportation volume is reduced by 50%. A maximum span of up to 40 meters can be created with this system.  . The F52 truss is built with 50 x 4mm main tubes and 48 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour. technical dataGeneralColour Aluminum TÜV certificate Yes Material Al EN AW-6082 T6 Technical DataNumber of points 3-point Edge dimension 58x101 cm System F102 Type straight Truss length 300 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 3000 x 580 x 101 mm Weight 56,20 kg
Length: 44,75 cm Pipe diameter: 48 mm Extraordinary high durableThe iM-Type truss system from Global Truss is a 4-point heavy-duty system with an external dimension of 35 cm. This system is characterized by its very high load capacity and compact design. It is suitable for large ground support and outdoor applications. Thanks to its high buckling resistance, this truss is also suitable for vertical applications. This truss system is designed for a span of up to 30 m. .The iM-Type truss is made of 48x4.5 cm chord tubes and 25x3 cm diagonal bracings made of aluminum. The trusses are connected with clevis connectors. Like all Global Truss trusses, this one can also be powder coated in any color. technical dataGeneralColour Aluminum TÜV certificate No Technical DataNumber of points 4-point Edge dimension 29,92 cm System iM-Type Type straight Truss length 44,75 cm main pipeDiameter main pipe 48 mm HardwareDimensions (L/W/H) 447,5 x 299,2 x 299,20 mm Weight 10,31 kg
