System length: 300 cm Actual length: 201,78 cm Pipe diameter: 50 mm Wall thickness: 2 mm Conical connectors includedGlobal Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adapter pieces can be attached which bring the DNA?s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube diameter of 50 mm allowing them to fit together using a conical coupler and locking pin. As with all Global Truss products the DNA Truss can be powder coated in every RAL color needed. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 4-point Edge dimension 29 cm System F34DNA Type straight Truss length 300 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 2 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm
Especially for LED screens - central application .of force Length: 300 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 300 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 3000 x 400 x 400 mm

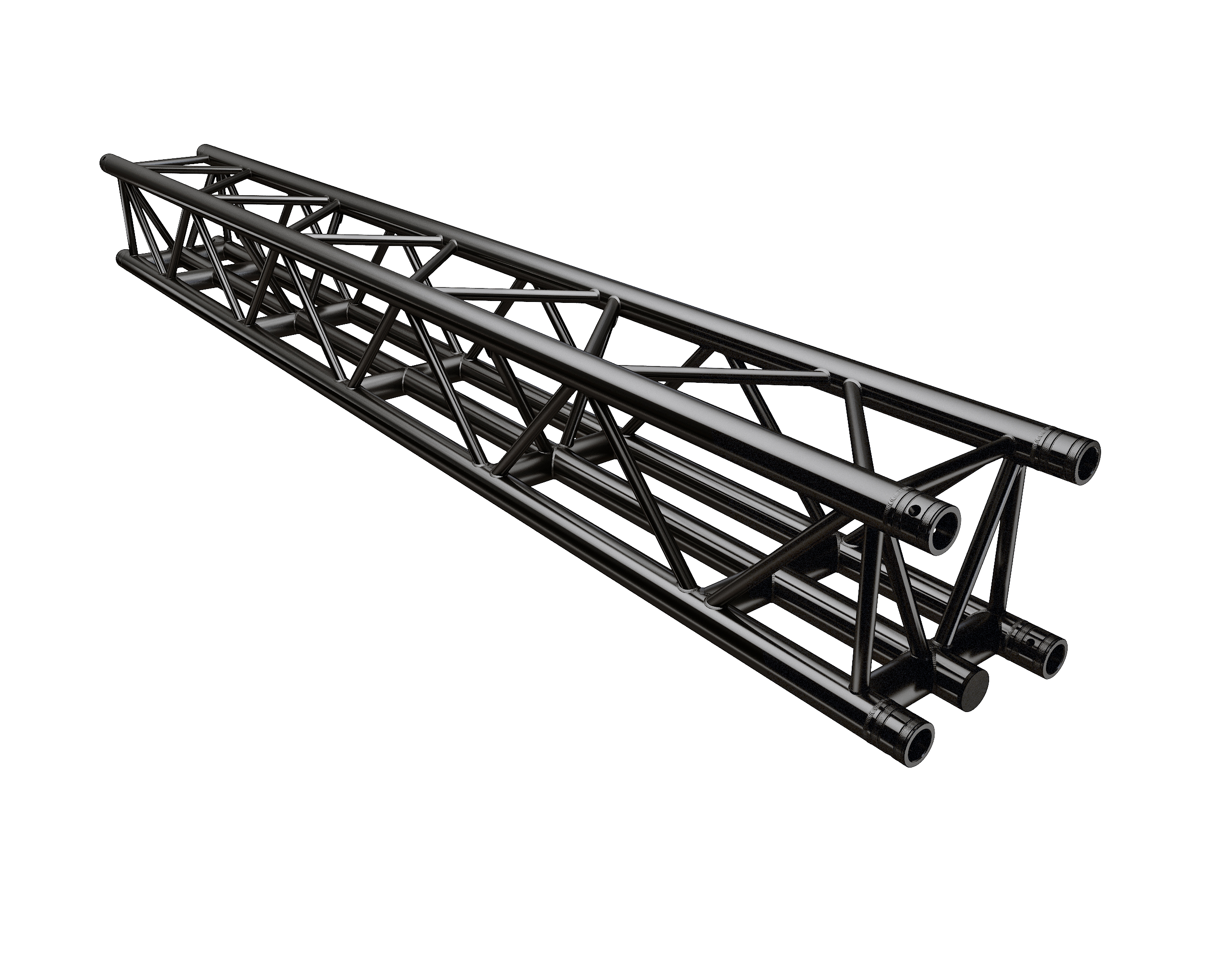

Especially for LED screens - central application of force Length: 250 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 250 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 2500 x 290 x 290 mm
Especially for LED screens - central application of force Length: 100 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 100 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 1000 x 290 x 290 mm
technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 4-point Edge dimension 29 cm System F34DNA Type Corner main pipeDiameter main pipe 50 mm Wall thickness main pipe 2 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm
Especially for LED screens - central application .of force Length: 150 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 150 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 1500 x 400 x 400 mm
Especially for LED screens - central application of force Length: 300 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 300 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 3000 x 290 x 290 mm
Especially for LED screens - central application of force Length: 150 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 150 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 1500 x 290 x 290 mm
Especially for LED screens - central application of force Length: 50 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 50 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 500 x 400 x 400 mm
Especially for LED screens - central application .of force Length: 200 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 200 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 2000 x 400 x 400 mm

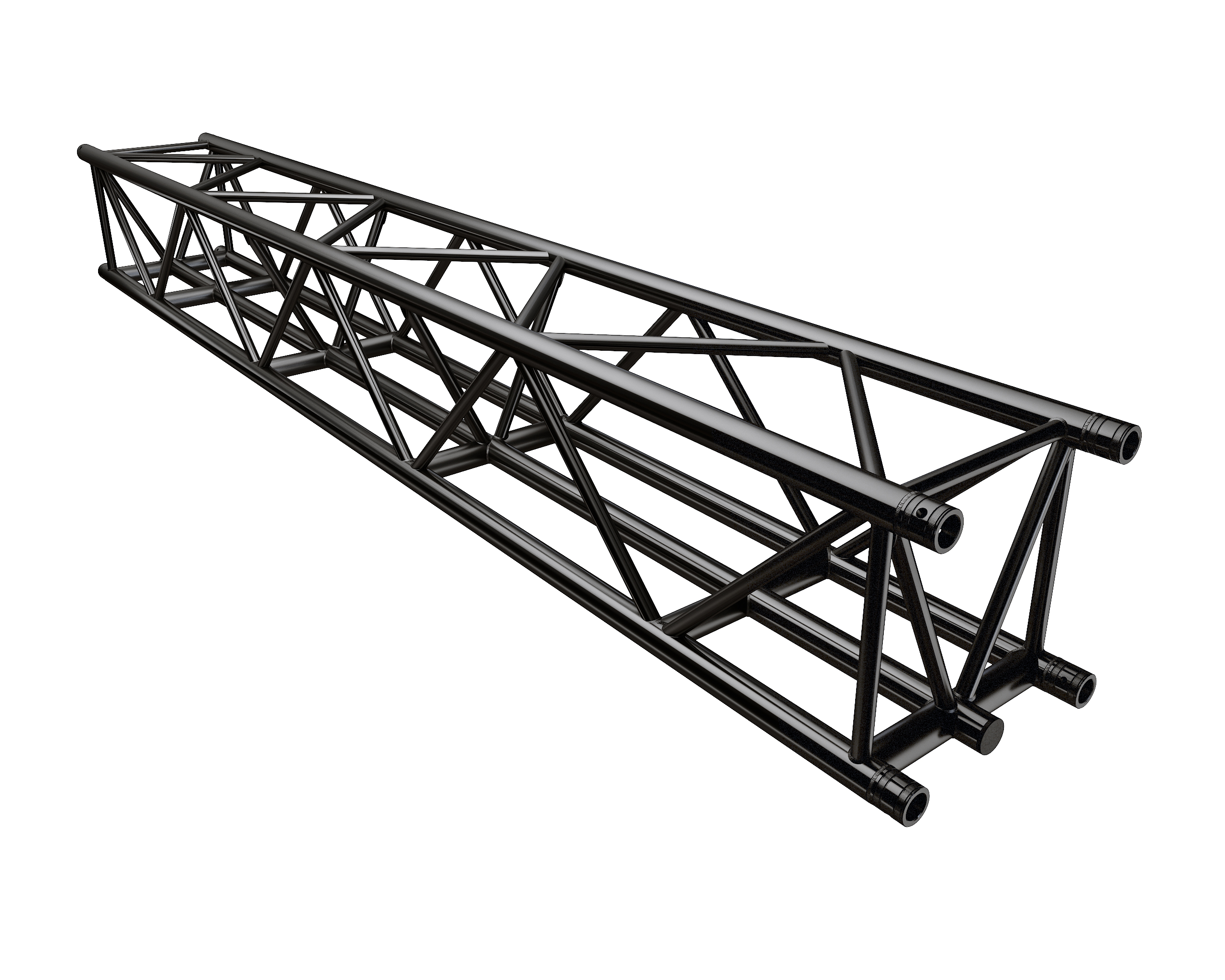

Especially for LED screens - central application .of force Length: 300 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 300 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 3000 x 400 x 400 mm
technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 4-point Edge dimension 29 cm System F34DNA Type Sonderteil HardwareDimensions (L/W/H) 300 x 300 x 50 mm Weight 1,91 kg
System length: 200 cm Actual length: 201,78 cm Pipe diameter: 50 mm Wall thickness: 2 mm Conical connectors includedGlobal Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adapter pieces can be attached which bring the DNA?s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube diameter of 50 mm allowing them to fit together using a conical coupler and locking pin. As with all Global Truss products the DNA Truss can be powder coated in every RAL color needed. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 4-point Edge dimension 29 cm System F34DNA Type straight Truss length 200 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 2 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm
Especially for LED screens - central application of force Length: 150 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 150 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 1500 x 290 x 290 mm
Especially for LED screens - central application .of force Length: 100 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 100 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 1000 x 400 x 400 mm
Especially for LED screens - central application .of force Length: 100 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 100 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 1000 x 400 x 400 mm
Especially for LED screens - central application of force Length: 200 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 200 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 2000 x 290 x 290 mm
System length: 50 cm Actual length: 55 cm Pipe diameter: 50 mm Wall thickness: 2 mm Connector piece F34 to F34DNAGlobal Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adapter pieces can be attached which bring the DNA?s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube diameter of 50 mm allowing them to fit together using a conical coupler and locking pin. As with all Global Truss products the DNA Truss can be powder coated in every RAL color needed. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 4-point Edge dimension 29 cm System F34DNA Type special part Truss length 55 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 2 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm
Especially for LED screens - central application .of force Length: 50 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 50 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 500 x 400 x 400 mm
Especially for LED screens - central application of force Length: 300 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 300 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 3000 x 290 x 290 mm
Especially for LED screens - central application .of force Length: 250 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 40 cm System F45 Type straight Truss length 250 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 25 mm Wall thickness Brace 3 mm HardwareDimensions (L/W/H) 2500 x 400 x 400 mm
Especially for LED screens - central application of force Length: 100 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 100 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 1000 x 290 x 290 mm
Especially for LED screens - central application of force Length: 200 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour black TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 200 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 2000 x 290 x 290 mm
Especially for LED screens - central application of force Length: 50 cm Pipe diameter: 50 mm Wall thickness: 4 mm Conical certified includedThis F35 Truss is based on the F34P 290mm x 290mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F34P Truss design, F35 Truss can connect to all standard F34 and F34P junctions or sleeve blocks so you use your existing F34/F34P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F35 Truss will not be limited to LED screen hanging applications. technical dataGeneralColour Aluminum TÜV certificate No Material Al EN AW-6082 T6 Technical DataNumber of points 5-point Edge dimension 29 cm System F35 Type straight Truss length 50 cm main pipeDiameter main pipe 50 mm Wall thickness main pipe 4 mm BraceDiameter Brace 20 mm Wall thickness Brace 2 mm HardwareDimensions (L/W/H) 500 x 290 x 290 mm
