Seetronic-SCWF5-B

4,36 €

pro Stück, inkl. MwSt zzgl. Versandkosten (11,90 € nach Deutschland. Versand in andere Länder auf Anfrage)

Nettopreis: 3,67 €

Verfügbar, Lieferzeit 1-3 Werktage

Tipp: Rufen Sie uns an für tagesaktuelle Preise und individuelle Paketangebote! Wir haben weit mehr als die hier gezeigte Auswahl und liefern Ihnen das komplette Herstellerprogramm zum absoluten Bestpreis.

Der Mindestbestellwert liegt bei 119,00 €.

Artikelnummer: A1621000250

Produktinformationen "Seetronic-SCWF5-B"

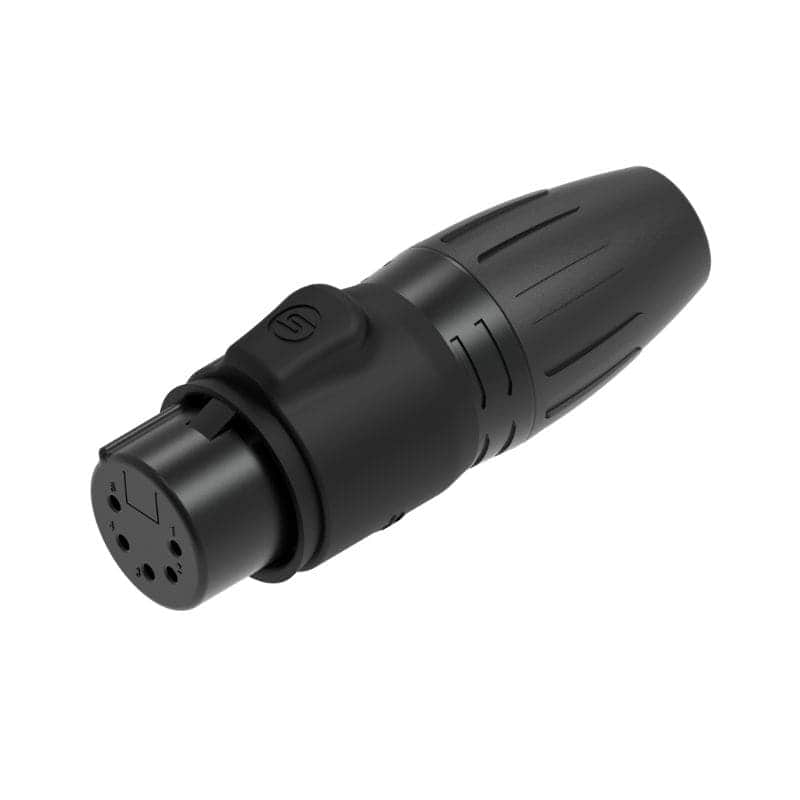

Seetronic SCWF5-B is a professional 5-pin XLR female cable connector designed for reliable signal transmission in demanding lighting and control applications. Built with a rugged black-plated zinc alloy housing and gold-plated contacts, it ensures stable connectivity and excellent signal integrity for professional DMX systems.

With an IP65 protection rating, the SCWF5-B is suitable for both indoor and outdoor environments where resistance to dust and moisture is essential. It supports cable outer diameters of 5-8 mm and features a secure latch-lock mechanism with integrated strain relief, making it ideal for touring, stage productions, and permanent installations requiring dependable DMX connectivity.

SPECIFICATION

Product Parameters

• Connection Type: XLR

• Gender: Female

Electrical Parameters

• Capacitance between contacts: ≤ 7 pF

• Contact resistance: ≤ 3 mΩ

• Dielectric strength: 1.5 kV DC

• Insulation resistance: > 10 GΩ (initial)

• Rated current per contact: 7.5 A

• Rated voltage: < 50 V

Mechanical Parameters

• Cable O.D.: 5–8 mm

• Insertion force: ≤ 20 N

• Withdrawal force: ≤ 20 N

• Service life: > 1000 mating cycles

• Cable size: Max. 1.0 mm² / 18 AWG

• Locking device: Latch lock

Material and Environmental Parameters

• Boot: PA

• Contacts: Cu alloy

• Contact plating: Au

• Insert: PA

• Housing: Zinc alloy

• Housing plating: Black plating

• Strain relief: POM

• Flame-retardant grade: UL 94 HB

• Protection class: IP65

• Temperature range: -30°C ~ +80°C

Specifications subject to change without notice
