Swivel Coupler Small 48-51/30/100kg
GLOBAL TRUSS
€32.02
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €26.90
Available, delivery time: 1-5 Werktage
The minimum order value is €119.00.
Article number:
B5032-2

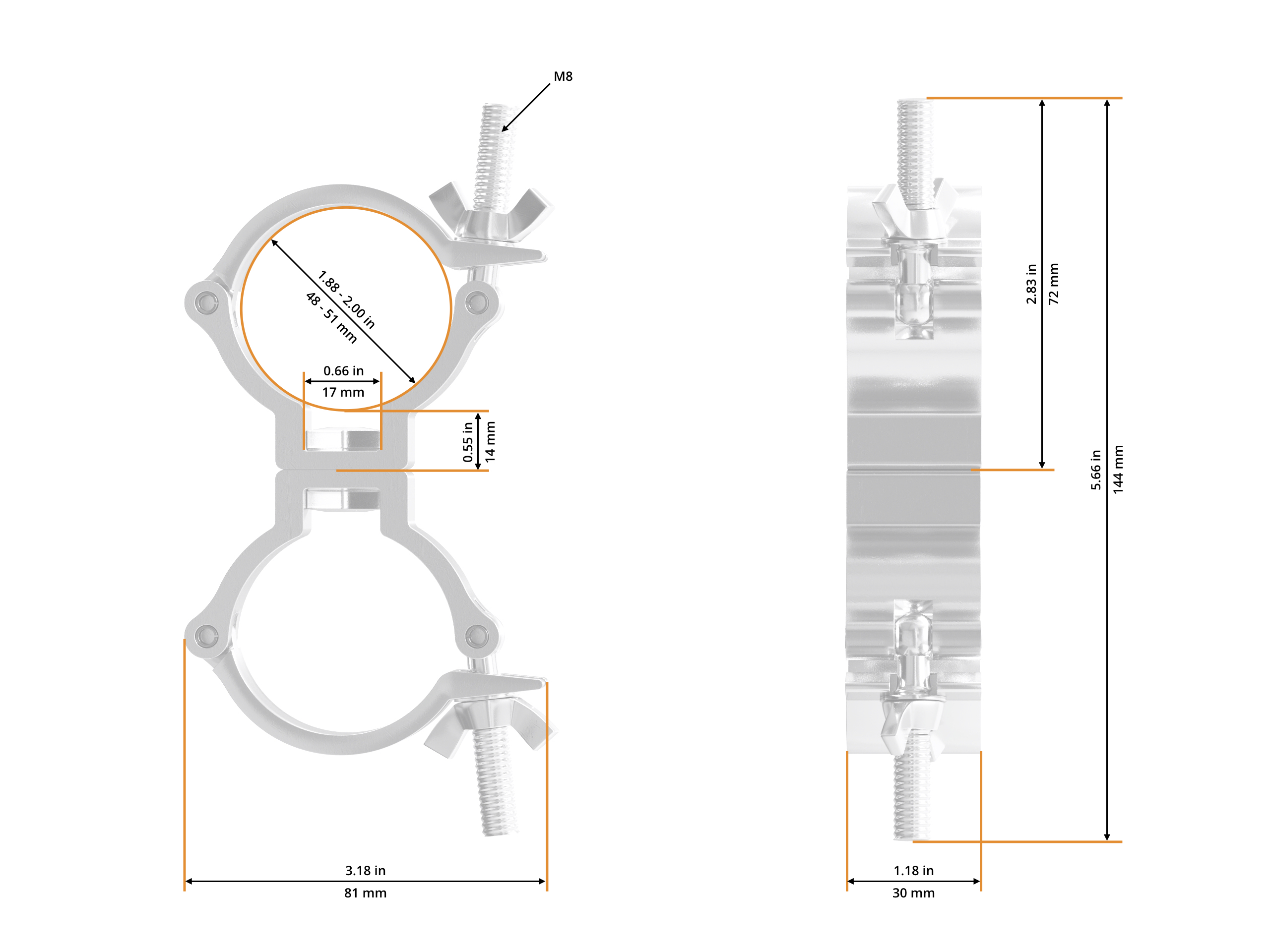

Product information "Swivel Coupler Small 48-51/30/100kg"
- Compatibility: 48-51 mm
- Width: 30 mm
- Tensile loading: 100 kg
- TÜV Certified
This swivel coupler allows you to connect round pipes, and has a maximum tensile load rating of 100kg.
This coupler is compatible to following truss systems:
technical data
General
- Colour Aluminum
- Compatibility 48-51 mm
- TÜV certificate Yes
- Aproved by DIN EN 13814:2004
- Material Aluminum 6061 T6
Fittings
- Clasp M8 wing nut
- Retaining screw Aufnehmer für 48-51mm, drehbar gekoppelt durch Bolzen
Technical Data
- Wide 30 mm
- Tensile load 100,00 kg
Kompatibilität
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
