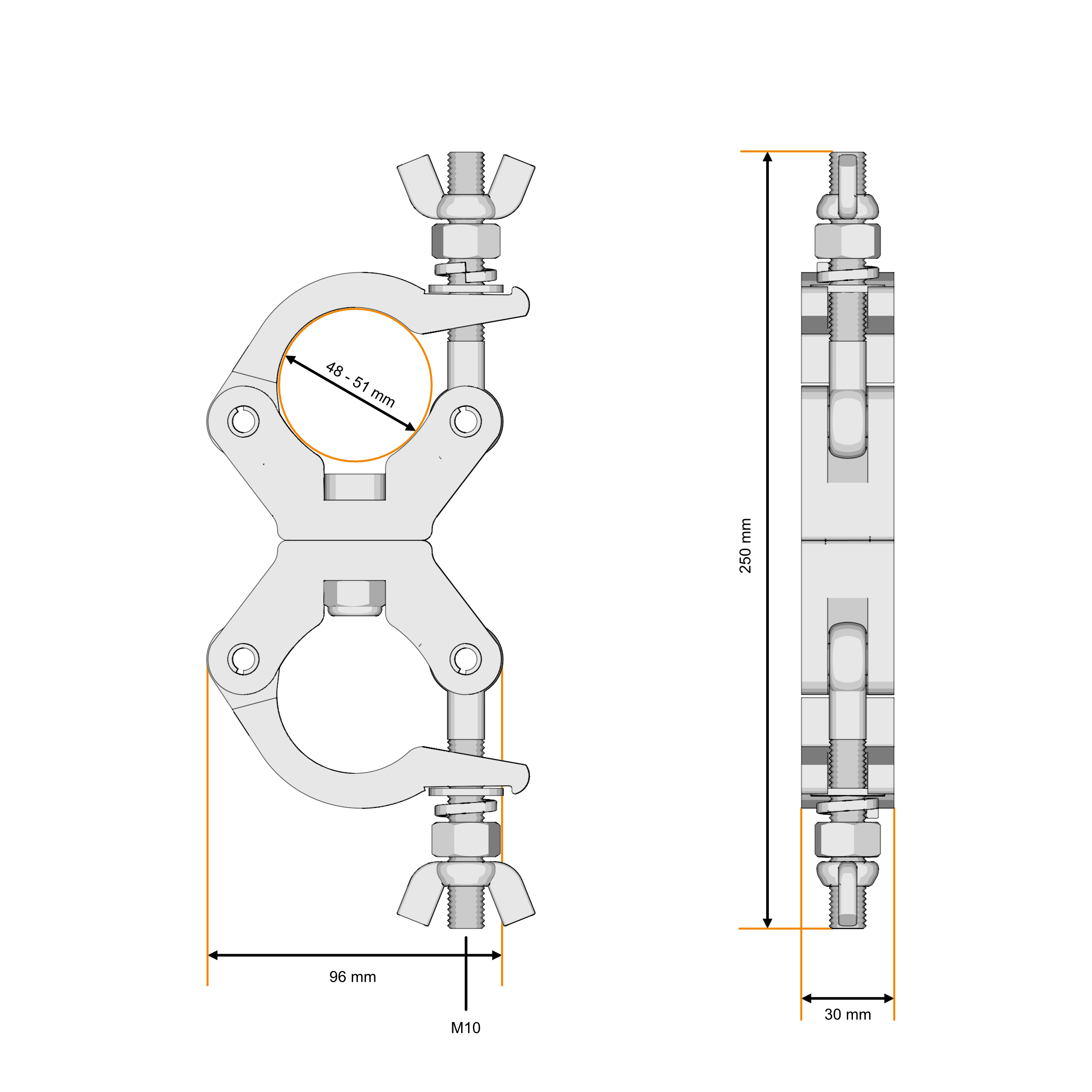

Swivel Coupler 48-51/30/750kg stage black
GLOBAL TRUSS
€55.18
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €46.37
Available, delivery time: 1-5 Werktage
The minimum order value is €119.00.
Article number:
B8222-B
Product information "Swivel Coupler 48-51/30/750kg stage black"
- Compatible: 48-51 mm
- Width: 30 mm
- Tensile loading: 750 kg
With a width of just 30 mm, the Global Truss Swivel Coupler 48?51/30/750KG is particularly well-suited for space-saving applications and is compatible with pipes measuring 48?51 mm in diameter. Despite its slim design, it offers the full load capacity of 750 kg and maximum freedom of movement thanks to its swiveling connection.
technical data
General
- Colour black
- Compatibility 48-51 mm
- TÜV certificate No
- Aproved by DIN EN 13814:2004
- Material Aluminum 6061 T6
Fittings
- Clasp M12 wing nut
- Retaining screw Aufnehmer für 48-51mm, drehbar gekoppelt durch Bolzen
Technical Data
- Wide 30 mm
- Tensile load 750,00 kg
