Swivel Coupler 35-50/30/75kg
GLOBAL TRUSS
€35.02
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €29.43
Available, delivery time: 1-5 Werktage
Tipp: Rufen Sie uns an für tagesaktuelle Preise und individuelle Paketangebote! Wir haben weit mehr als die hier gezeigte Auswahl und liefern Ihnen das komplette Herstellerprogramm zum absoluten Bestpreis.
The minimum order value is €119.00.
Article number:
B8233
Product information "Swivel Coupler 35-50/30/75kg"

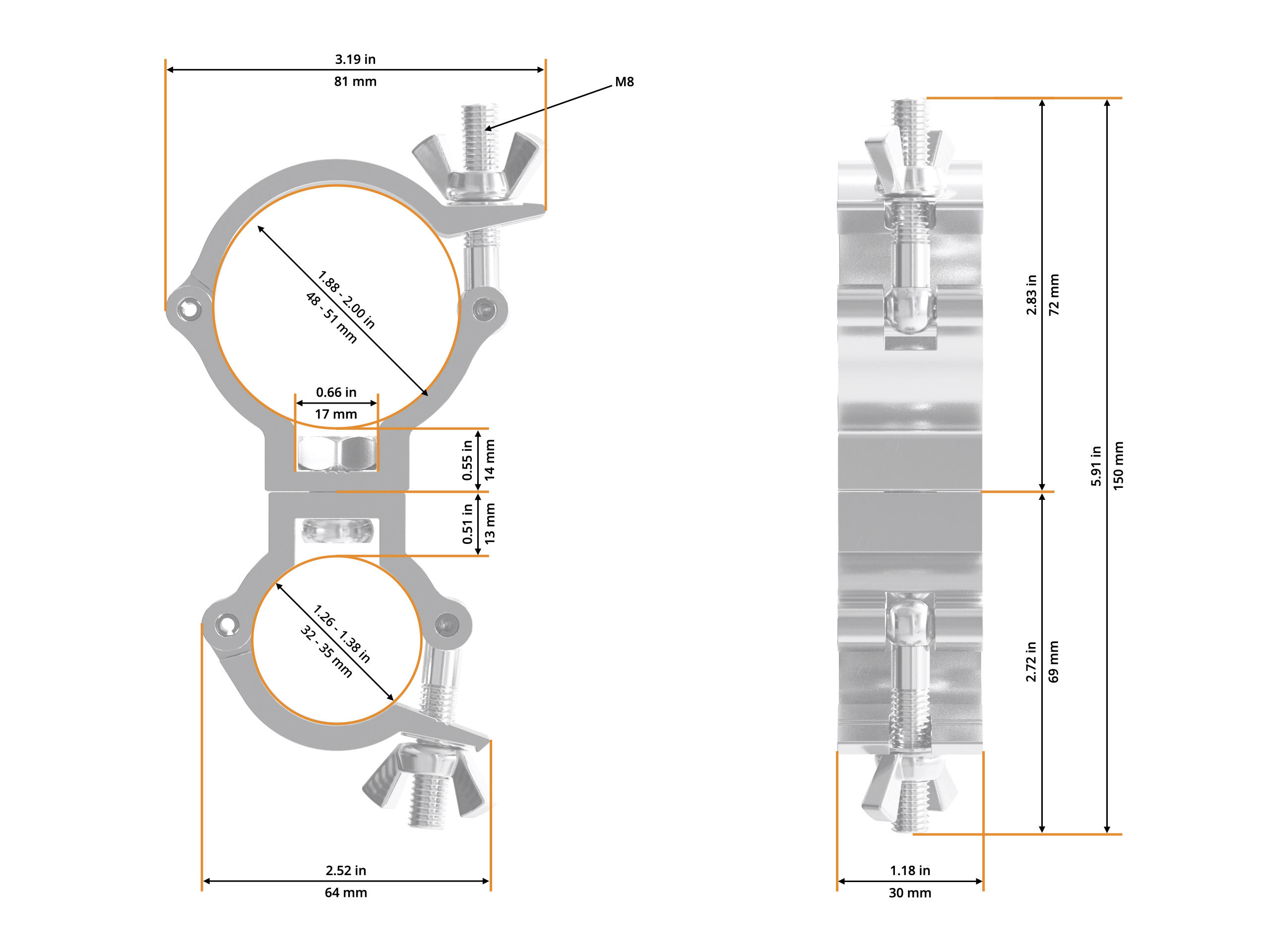

- Compatibility: 32-35 mm and 48-51 mm
- Width: 30 mm
- Tensile load: 75 kg
- TÜV Certified
This swivel coupler offers an easy connecting between pipes with a maximum load of 75kg. It was developed to connect truss systems with different main tube diameters. In this special case truss with a main tube diameter of 32 to 35 mm can be connected to truss with a main tube diameter of 48 to 51 mm.
This coupler is compatible to following truss systems:
technical data
General
- Colour Aluminum
- Compatibility 32-35 mm und 48-51 mm
- TÜV certificate No
- Aproved by DIN EN 13814:2004
- Material Aluminum 6061 T6
Fittings
- Clasp M8 wing nut
- Retaining screw drehbar gekoppelt durch Bolzen
Technical Data
- Wide 30 mm
- Tensile load 75,00 kg
