Stage Studio Manual Zoom 12-55° 200W LED COB 3200K WW Fresnel

Product information "Stage Studio Manual Zoom 12-55° 200W LED COB 3200K WW Fresnel"

  • 200W COB WW Citizen LED (3200K)
  • beam angle 12° - 55° (150mm fresnel lense)
  • 16bit smooth dimming 0-100%
  • CRI &gt.90

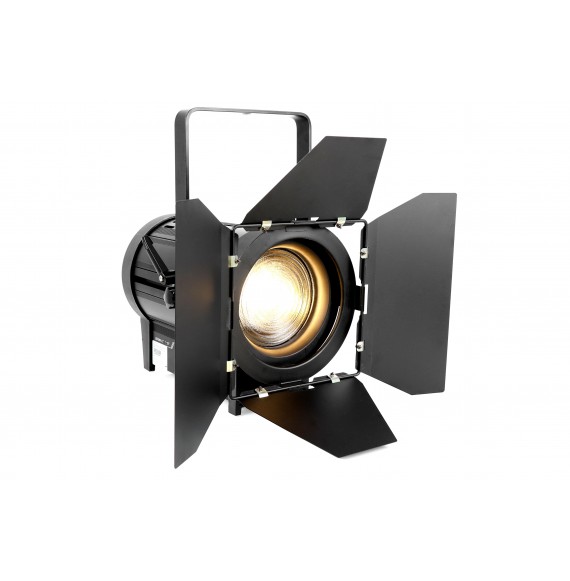

  • incl. barndoor


The new IRIDIUM Stage Studio Manual Zoom works with a powerful 200W COB Citizen LED. The color temperature is 3200K and seems like a traditional halogen Spotlight. The device is equipped with a quiet fan and flicker free projection. The 150mm fresnel lense has manual zoom function from 12 - 55° and the 4-way barndoor is including in delivery. The purpose of the IRIDIUM Stage Studio Manual Zoom is in TV studios, schools, fairs, theatrical performances, opera and many other places.



technical data



Power supply

  • Voltage 100-240V / 50-60Hz
  • Power consumption max. 220W

Light source

  • LM type LED single colour
  • Colour spectrum 3200K
  • wavelength/colour temperature 3200K
  • Power 200W
  • Number / Power 1x 200W

Optics

  • Beam angle 12° - 55°
  • Zoom Yes

Connections

  • Current in NEUTRIK powerCON
  • Current out NEUTRIK powerCON
  • XLR in/out 3pol

Controlling

  • DMX512 Yes
  • Number of DMX channels 3

Hardware

  • Protection class IP20
  • Dimensions (L/W/H) 360 x 270 x 427 mm
  • Weight 5,80 kg
