Selflock Hook Easy 48-80/30/150kg stage black
GLOBAL TRUSS
€58.29
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €48.99
Available, delivery time: 1-5 Werktage
The minimum order value is €119.00.
Article number:
B8073-1B

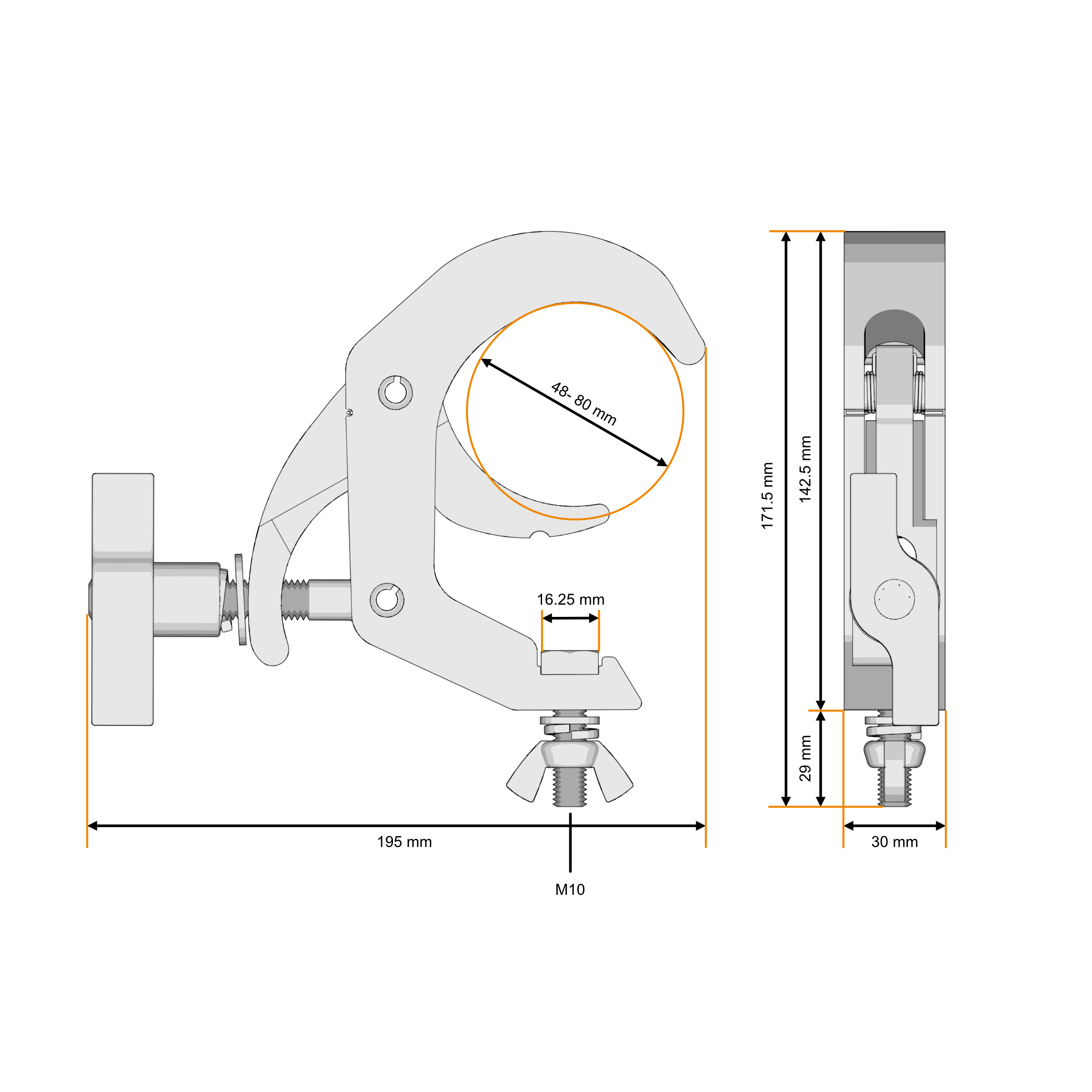

Product information "Selflock Hook Easy 48-80/30/150kg stage black"
- Fast and easy fixture
- Compatibility: 48-80 mm
- Width: 30 mm
- Tensile load: 150 kg
This Selflock Hook Easy can be used with tube diameters from 48 to 80 mm and is a quick and easy way to attach equipment to a truss. Due to its special design with a screw coming off the side, it can never get caught on the equipment or in the truss. Convenient locking by the large wing nut is thus possible at any time. With a tensile load of 150kg SWL, it is also suitable for carrying larger devices.
This coupler is compatible to following truss systems:
technical data
General
- Colour black
- Compatibility 48-80 mm
- TÜV certificate No
- Aproved by DIN EN 13814:2004
- Material Aluminum 6061 T6
Fittings
- Clasp M12 wing nut
- Retaining screw M10 device screw, snap ring, washer
Technical Data
- Wide 30 mm
- Tensile load 150,00 kg
