RDM XS8
€215.04
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €180.70
Available, delivery time: 1-3 working days
Article number:
A1321000087
Product information "RDM XS8"
The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter.
With one 5-pin input, one 5-pin thru and eight 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.

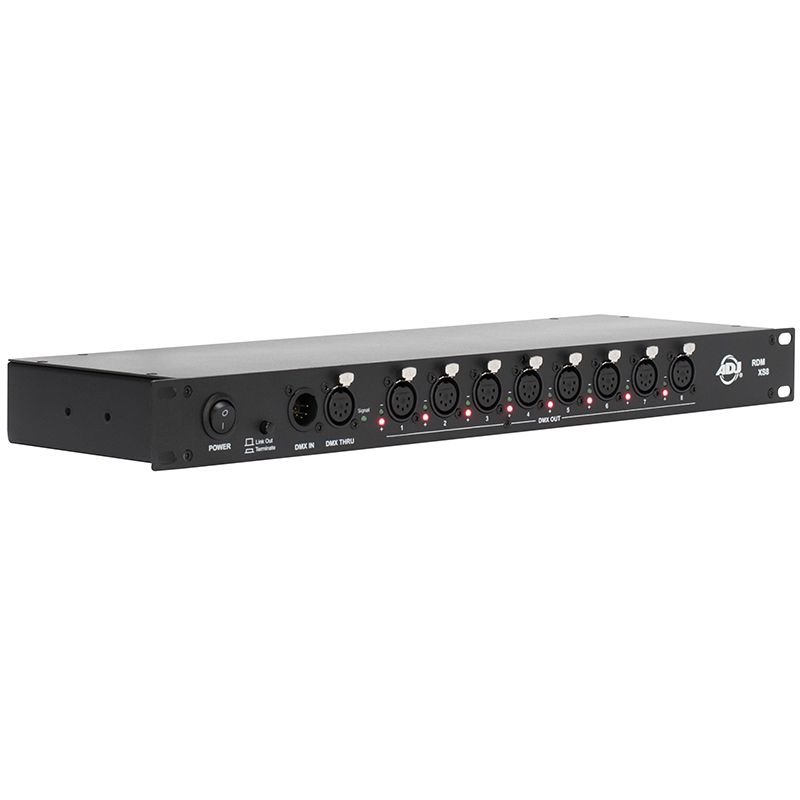

Its slim 1U configuration includes 1x 5-pin XLR input, 1x 5-pin XLR thru, 8x 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
SPECIFICATIONS
Protocols:
• DMX512
• RDM
Physical:
• 19 inch Rack Mount (1 rack space)
• 1x 5-pin XLR Input
• 1x 5-pin XLR Thru
• 8x 5-pin XLR Outputs
• Link Out Termination Switch
• DMX / RDM Protocol Switch
Dimensions & Weight:
• Length: 152.4mm
• Width: 482mm
• Height: 44mm
• Weight: 2.21kg
Electrical:
• AC Input: 100-230V 50/60Hz
• Power Consumption: 3.3W @ 230V
• Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal:
• Ambient Operational Temperature: -20°C to 45°C
• Humidity: <75%
• Storage Temperature: 25°C
