FanBase 600

IRIDIUM

€574.61

% RRP: €599.00 (4.07% saved)

per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)

Net price: €482.86

Available, delivery time: 1-5 Werktage

Article number: B108333

Product information "FanBase 600"

Diameter: 60 cm
Power output protection socket / powerCON
stepless fan
Power connection via powerCON

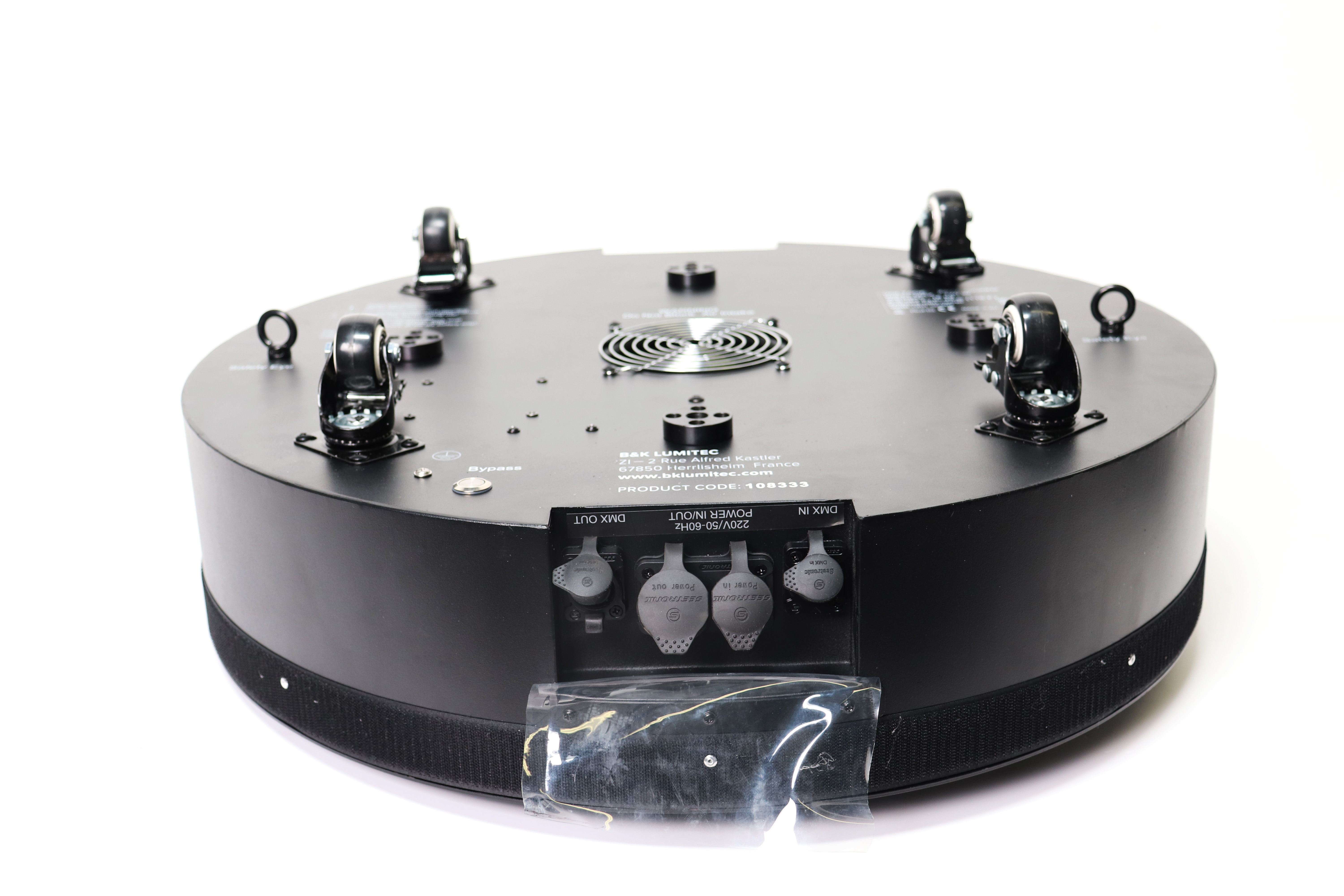

4 castors (4 braked)

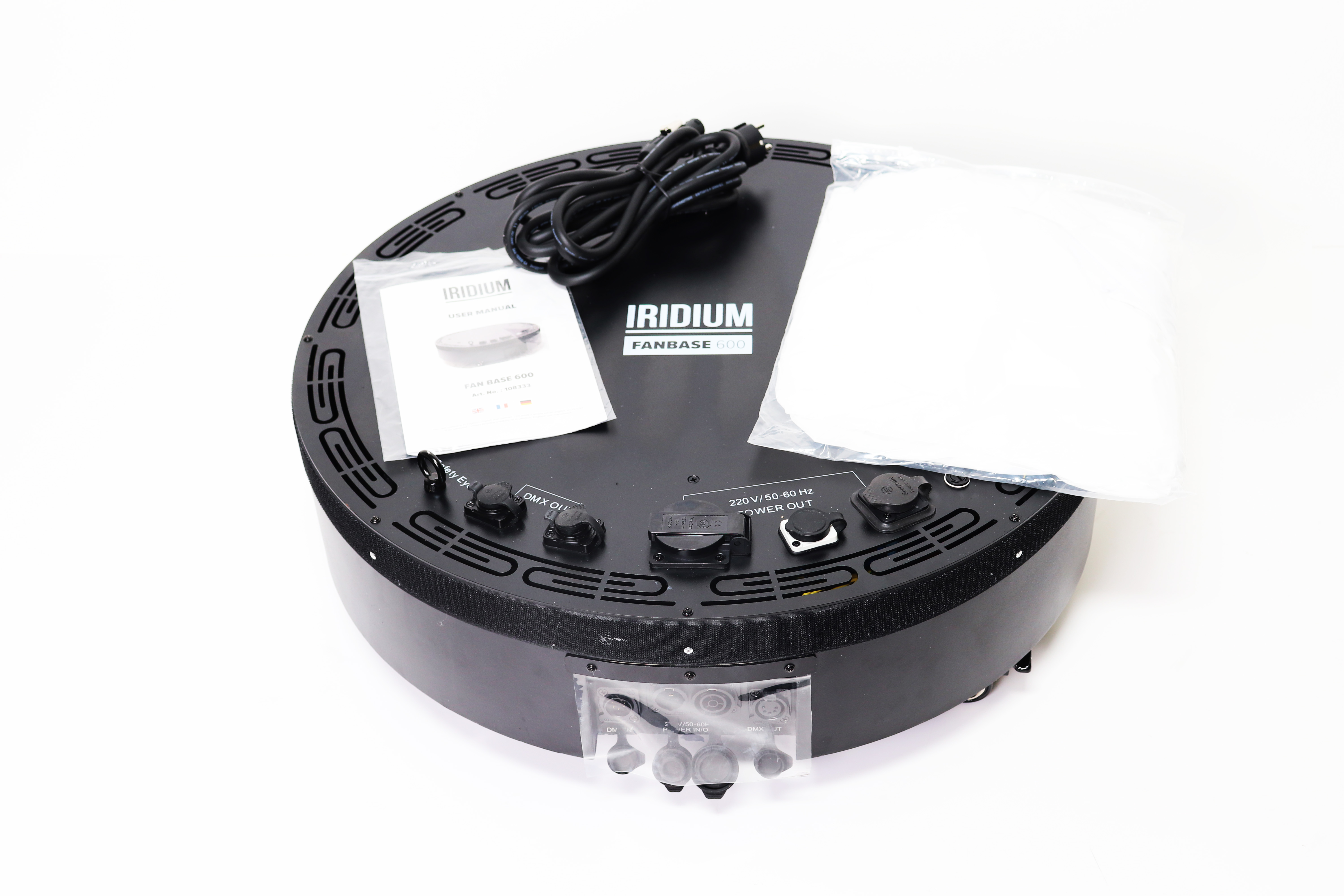

The IRIDIUM FanBase 600 is a 60cm diameter fan base designed for spotlights or moving heads. It features power and DMX outputs and can be mounted on a truss pole using its four M12 threaded holes. Four half-cone connectors are included.

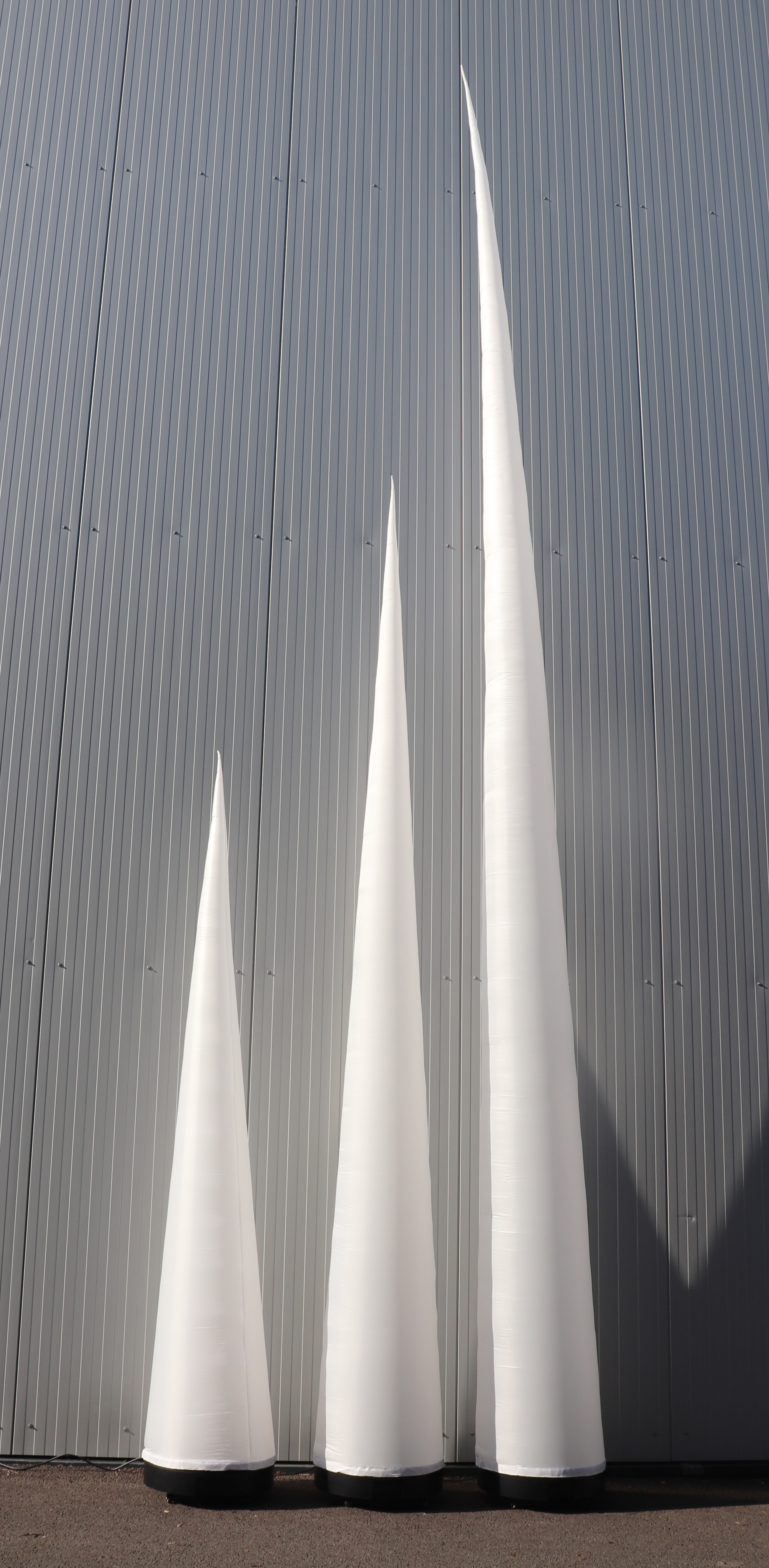

The IRIDIUM FanBase 600 is a durable and versatile base for professional lighting setups. It offers optional rain covers for weather protection: the ball rain cover (Code 108337) fits moving heads up to 85cm, and the cylindrical rain cover (Code 108336) fits up to 62cm. A 3.5m white air cone is included, with additional heights available.

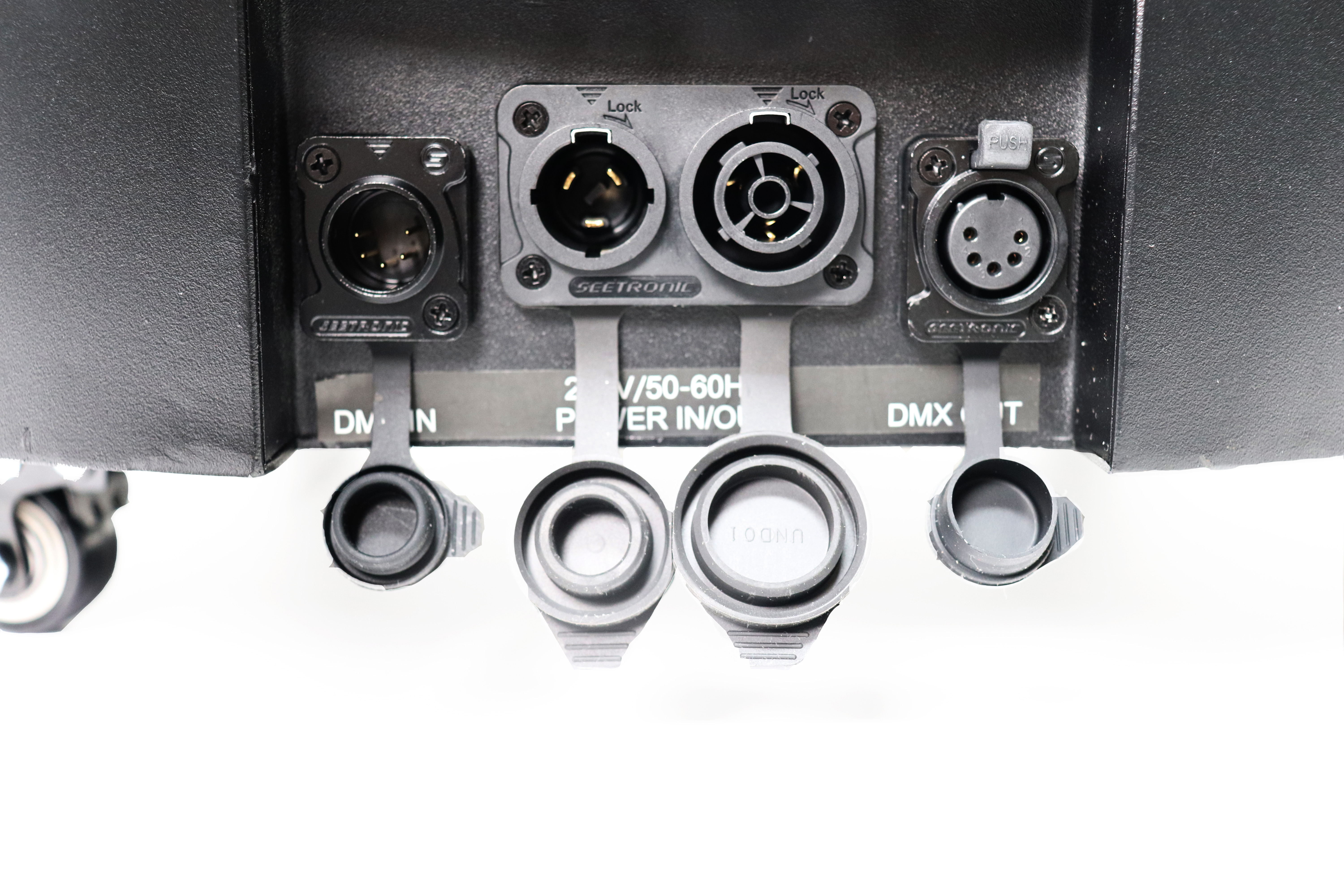

A built-in fan ensures safety with automatic shutdown and a bypass switch for temporary override. It features IP65 power input with Power Twist, IP65 Power OUT, and Schutzko connectors, plus XLR 5-pin and 3-pin In/Out for signals.

The FanBase 600 is durable, adaptable, and ideal for professional lighting setups.

technical data

Power supply

Voltage 100 ~ 240 V / 50 ~ 60 Hz
Power consumption max. 120 W

General

Material Stahl

Connections

Current in P-Con
Current out P-Con
XLR in/out 3pol / 5pol

Hardware

Dimensions (L/W/H) 600 x 600 x 200 mm
Weight 16,00 kg
