F14 40cm
GLOBAL TRUSS
€119.56
per item, incl. VAT plus shipping costs (€0.00 to Germany. Shipping to other countries request)
Net price: €100.47
Not available, please ask for delivery time
Article number:
BF14040
Product information "F14 40cm"
- Length: 40 cm
- Pipe diameter: 20 mm
- Wall thickness: 2 mm

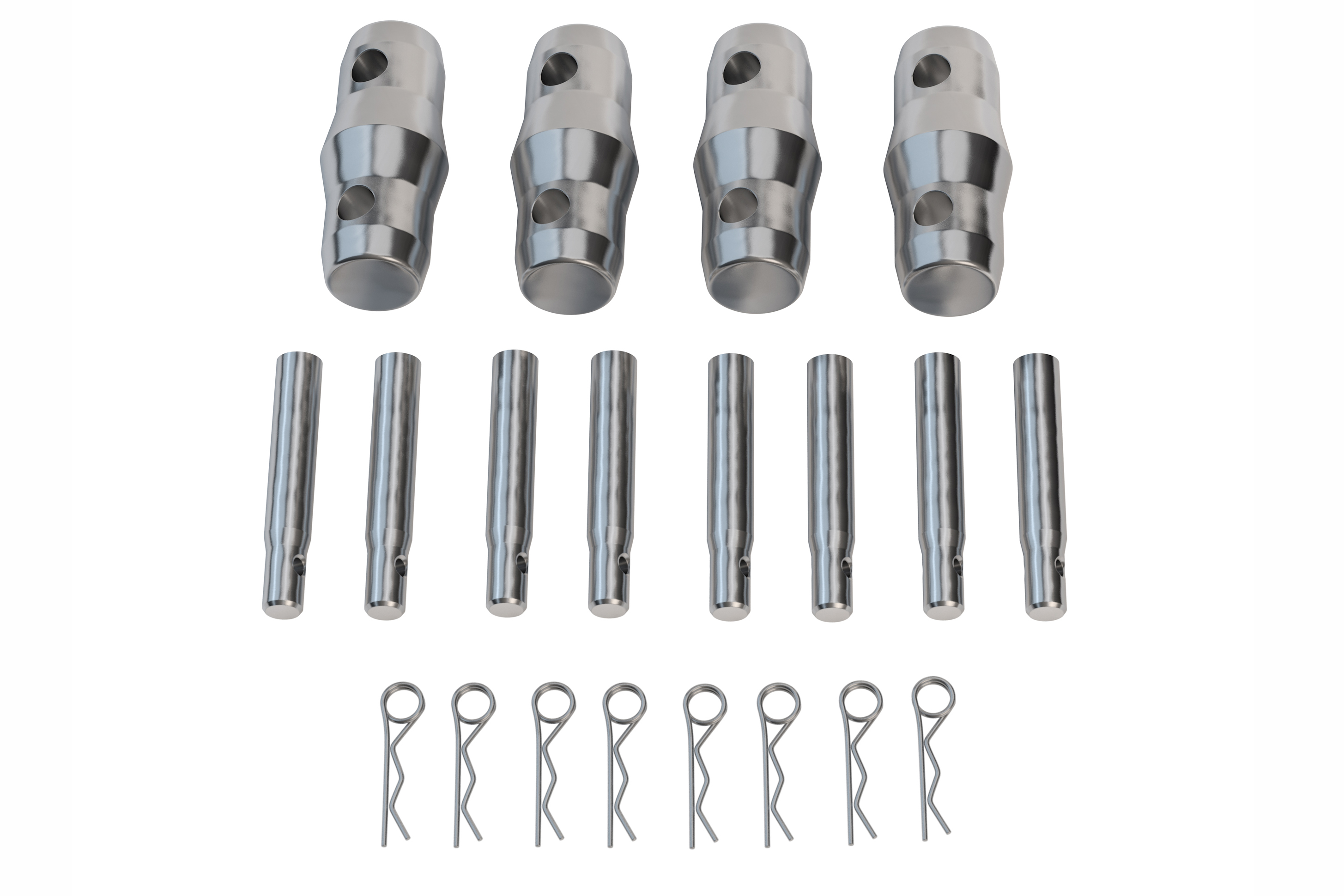

- Conical connectors included
The F14 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 10cm. The small footprint of the truss is perfect for shop fitting and constructions with minimal loads. A maximum span of up to 7 meters can be used.
 .
The F14 truss is built with 20 x 2mm main tubes and 6mm diagonal braces of aluminium, whilst the extra end frame improves the stability of the truss. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
technical data
General
- Colour Aluminum
- TÜV certificate No
- Material Al EN AW-6061 T6
Technical Data
- Number of points 4-point
- Edge dimension 10 cm
- System F14
- Type straight
- Truss length 40 cm
main pipe
- Diameter main pipe 20 mm
- Wall thickness main pipe 2 mm
Brace
- Diameter Brace 6 mm
Hardware
- Dimensions (L/W/H) 400 x 100 x 100 mm
