Produktinformationen "Vizi Pix Z19"

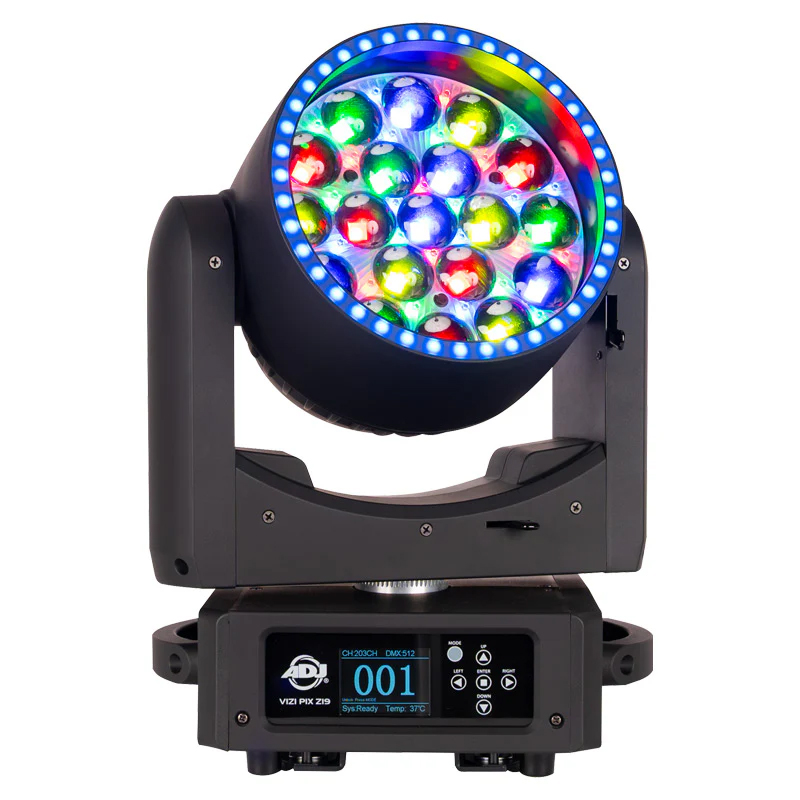

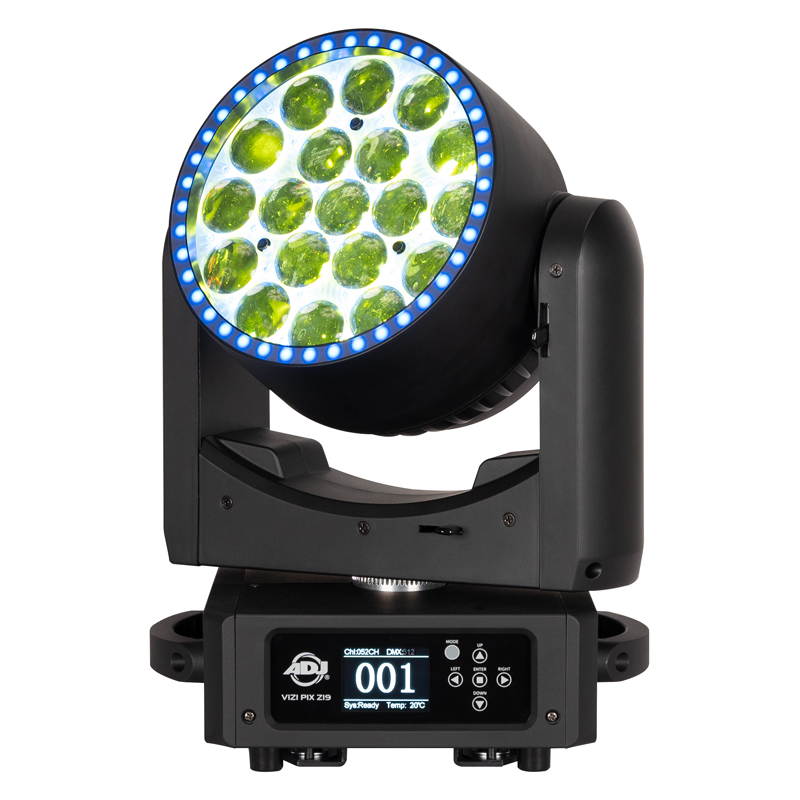

Vizi Pix Z19 is a high-performance moving head wash fixture engineered to deliver vibrant color effects and captivating visuals for professional stages and live events.

Equipped with nineteen 30-Watt RGBL LEDs, the fixture offers advanced virtual CMY color mixing, a wide motorized zoom range, and smooth electronic dimming, making it ideal for crafting everything from precise beams to expansive washes. Its dynamic design is enhanced by 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable for complex patterns and dazzling effects. Built-in pixel effect programs and color macros further expand its creative possibilities.

Control options include DMX, Artnet, sACN, RDM, and the Aria X2 wireless system for seamless integration and over-the-air updates. Adjustable dim curves, selectable LED refresh rates, and a white color temperature range from 2,700K to 10,000K ensure flexibility across diverse environments, from live performances to broadcast studios.

With robust pan/tilt locks, durable Seetronic power and data connections, and a lightweight, low-maintenance build, the Vizi Pix Z19 is the ultimate tool for creating striking, professional-grade lighting displays with unmatched precision and versatility.

SPECIFICATIONS

Light Source

• Foreground: 19 x 30W RGBL 4-in-1 LEDs

• Foreground LED life: 30,000 hours

• Background: 30 x 0.5W RGB SMD LEDs

• Background LED life: 50,000 hours

• Ring: 40 x 0.5W RGB SMD LEDs

• Ring LED life: 50,000 hours

Optical

• Motorized zoom: 7°-42°

• Beam angle: 7°-42°

• Field angle: 9°-60°

Photometrics

• 16,500+ lux @ 5m (7° beam)

• CRI: 86

Color

• 19 RGBL LEDs with Red, Green, Blue and Lime emitters

• 70 RGB LEDs with Red, Green and Blue emitters

• Virtual CMY control via DMX

• Virtual foreground and background color wheel control

• Built-in color macros

• Linear white color temperature control: 2,700K-10,000K

• Color temperature presets: 2,700K, 3,000K, 3,200K, 4,000K, 4,500K, 5,000K, 5,600K, 6,500K, 8,000K and 10,000K

Effects

• 19 fully pixel-mappable foreground LEDs

• 30 fully pixel-mappable background LEDs

• 40 RGB ring LEDs with 3-channel control

• Built-in pixel effect programs with speed and fade control

• Variable strobe pulse effects: 0.5-33Hz

• Smooth electronic dimming: 0-100%

• Selectable dimming modes: Standard, Stage, TV, Architectural, Theatre and Stage 2

• User-selectable dimming speed: 0.1-10 seconds

• 4 dimming curves: Square, Linear, Inverse Square and S-Curve

• Selectable LED refresh rates: 900Hz-25kHz

Pan & Tilt

• Selectable pan range: 540° or 630°

• Tilt range: 270°

• 16-bit fine pan and tilt control

• Pan and tilt locks

Features

• Moving light pixel wash with effects

• Color-calibrated pixels for consistent output between production batches

Control

• Aria X2 Wireless Management System

• DMX512

• RDM (Remote Device Management)

• Art-Net

• sACN

• 8 DMX control modes: 30, 32, 43, M1 58, M2 58, 203, 123 and 133 channels

• Wired digital communication network

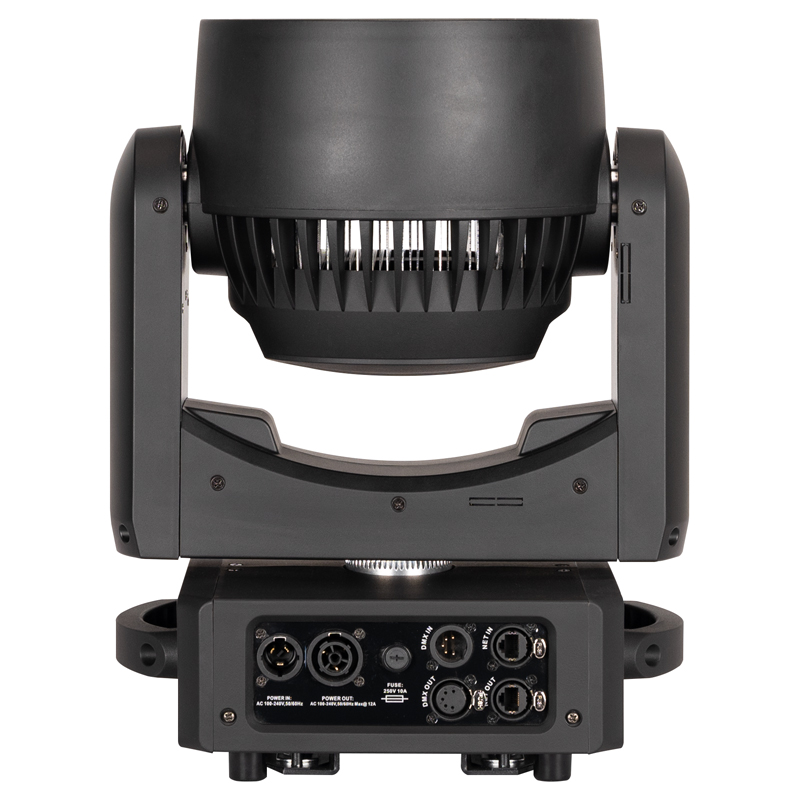

Connections

• Seetronic locking power In/Thru connections

• Seetronic 5-pin XLR DMX In/Out

• 2 RJ45 network ports

Electrical

• Input voltage: AC 100-230V, 50/60Hz

• Maximum power consumption @ 230V: 690W, 3.04A

Thermal

• Fan cooled

Physical

• Dimensions (L x W x H): 230 x 304 x 394mm

• Center-to-center spacing: 351mm

• Weight: 10.1 kg

Included Accessories

• 2 x 108mm Omega brackets

• 1 x 2m locking power cable

• Safety cable

Specifications subject to change without notice
