Pixie Driver 8000 V2

1.599,00 €

pro Stück, inkl. MwSt. zzgl. Versandkosten (0,00 € nach Deutschland. Versand in andere Länder auf Anfrage)

Nettopreis: 1.343,70 €

Versandkostenfrei

Verfügbar, Lieferzeit 1-3 Werktage

Tipp: Rufen Sie uns an für tagesaktuelle Preise und individuelle Paketangebote! Wir haben weit mehr als die hier gezeigte Auswahl und liefern Ihnen das komplette Herstellerprogramm zum absoluten Bestpreis.

Mengenrabatt anfragen

Artikelnummer: A1226200079

Produktinformationen "Pixie Driver 8000 V2"

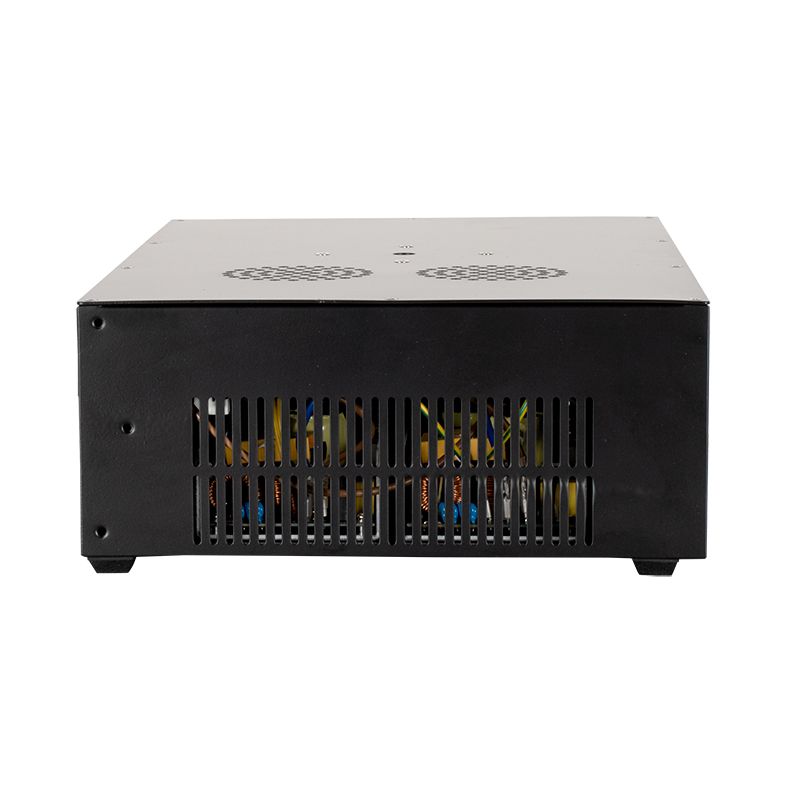

Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, Art-Net or sACN (streaming ACN) protocols.

The Pixie Driver 8000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 2 to 50 feet (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

SPECIFICATIONS

Control Protocols

• Art-Net

• sACN

• Default subnet mask: 255.0.0.0

Pixel Capacity

• Control of up to 8,160 pixels via Art-Net or sACN

• Maximum capacity per output port: 1,020 pixels

• Maximum 34 x Pixie Strip 30 units per port

• Maximum 17 x Pixie Strip 60 or Pixie Curve 60 units per port

• Maximum 8 x Pixie Strip 120 units per port

• Mixed configurations must not exceed 1,020 pixels per port

Interfaces

• OLED display with 4-button menu

• USB port for firmware updates

Features

• Manual RGB mode

• Internal programs

• Manual dimming control

• Full pixel mapping control

Compatibility

• Power and data supply for ADJ Pixie Strip 30

• Power and data supply for ADJ Pixie Strip 60

• Power and data supply for ADJ Pixie Strip 120

• Power and data supply for ADJ Pixie Curve 60

Connections

• PowerLock power input

• 2 locking RJ45 ports

• 8 x 4-pin DC 24V power/data outputs for Pixie Strip fixtures

Electrical

• Input voltage: AC 100-240V, 50/60Hz

• Maximum power consumption: 1,600W

Operating Environment

• Operating temperature: -20°C to 45°C

Mounting

• Mounting bolt for attaching a clamp and suspending the unit from truss

• Clamp and truss not included

• Includes 19-inch rack mount ears

• Safety eye

Physical

• Dimensions (L x W x H): 300.3 x 480 x 120mm

• Weight: 6.1 kg

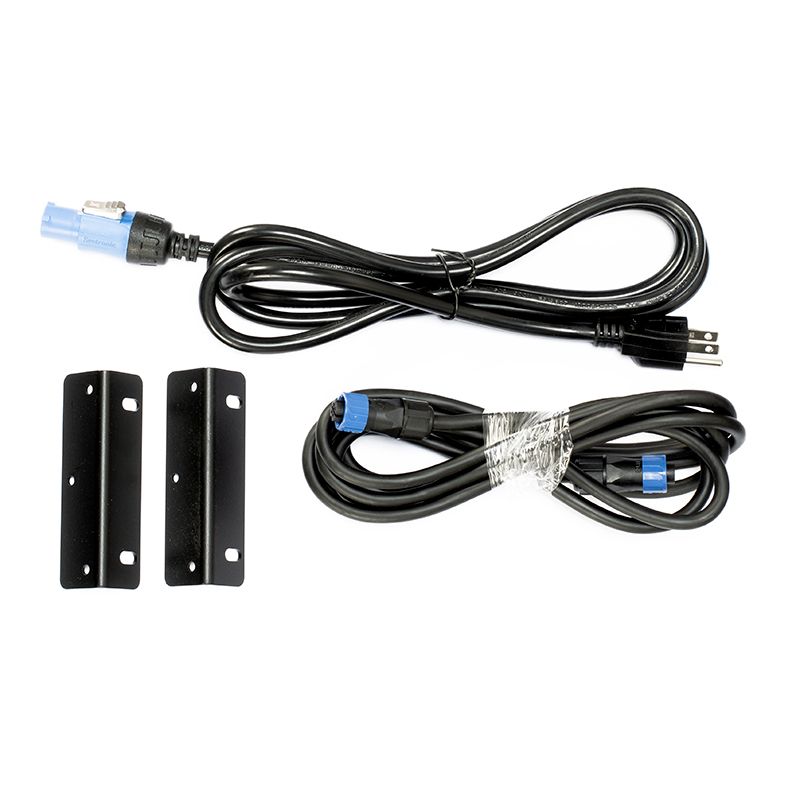

Included Accessories

• 1 x 3m Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip link cable

• 1 x SIP20MPC (SIP293) power input cable

• 2 x 19-inch rack mount ears

Optional Accessories

• PSLC1 (PIX158): 0.3m Pixie Strip Link Cable

• PSLC3 (PIX174): 0.9m Pixie Strip Link Cable

• PSLC5 (PIX188): 1.5m Pixie Strip Link Cable

• PSLC10 (PIX200): 3m Pixie Strip Link Cable

• PSLC15 (PIX213): 4.6m Pixie Strip Link Cable

• PSLC25 (PIX229): 7.6m Pixie Strip Link Cable

• PSLC50 (PIX242): 15.2m Pixie Strip Link Cable

Specifications subject to change without notice
