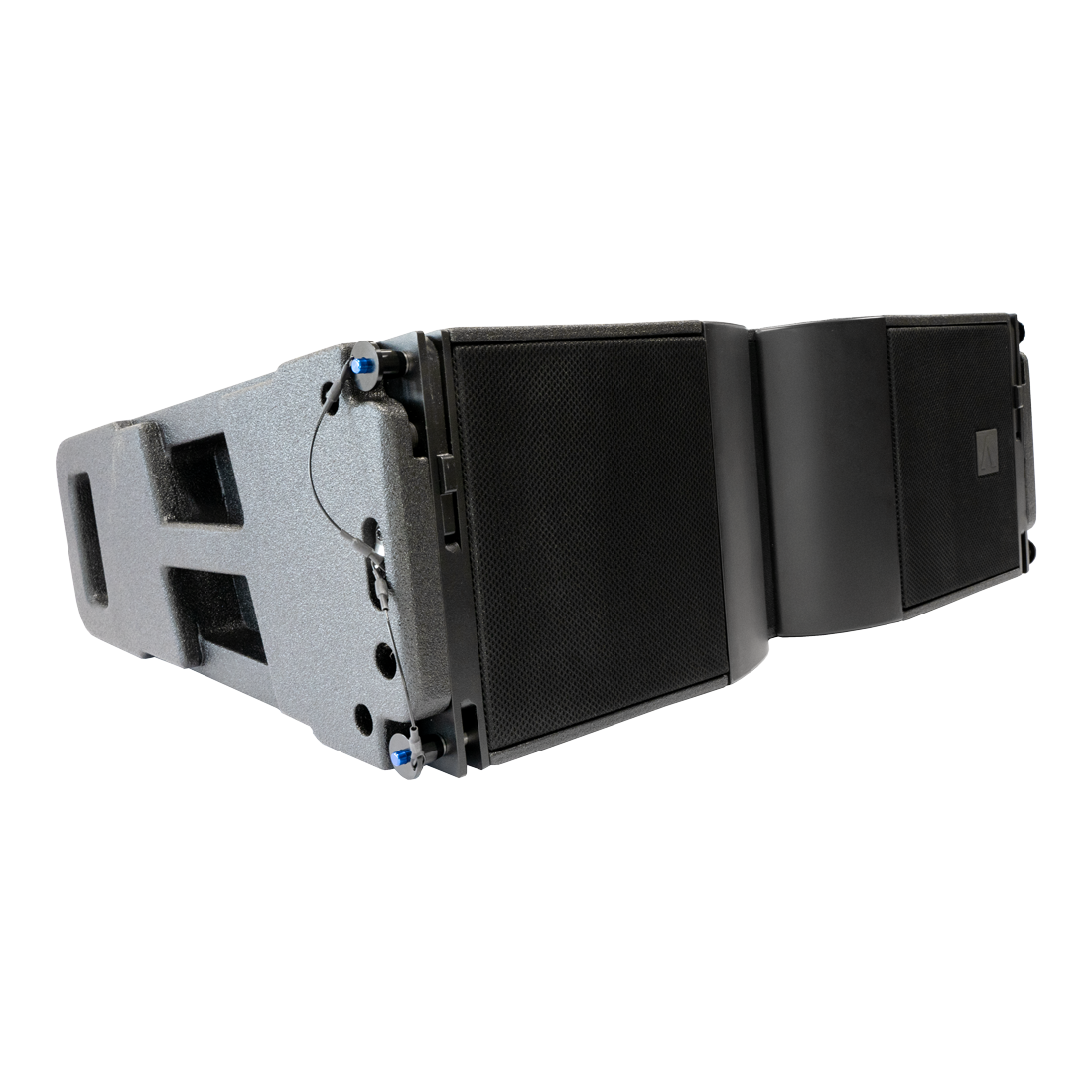

Akro ATL328 Top

2.251,66 €

% UVP: 2.399,00 € (6.14% gespart)

pro Stück, inkl. MwSt. zzgl. Versandkosten (0,00 € nach Deutschland. Versand in andere Länder auf Anfrage)

Nettopreis: 1.892,15 €

Versandkostenfrei

Verfügbar, Lieferzeit 1-3 Werktage

Tipp: Rufen Sie uns an für tagesaktuelle Preise und individuelle Paketangebote! Wir haben weit mehr als die hier gezeigte Auswahl und liefern Ihnen das komplette Herstellerprogramm zum absoluten Bestpreis.

Mengenrabatt anfragen

Artikelnummer: A1163900043

Produktinformationen "Akro ATL328 Top"

The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.

SPECIFICATIONS

Technical Data

• Speaker type: 3-way active dual 8-inch line array module, Milan certified

Acoustical Data

• Frequency response: 70 - 20,000 Hz

• Max. SPL: 127 dB (single unit)

• MF/HF: 4-inch MF + 2.55-inch HF neodymium drivers on custom waveguide

• LF: 2 x 8-inch neodymium woofers with 2.5-inch voice coils

• Crossover frequencies: 600 Hz / 3.5 kHz

• Horizontal directivity: 110°

• Vertical directivity: 10°

Amplifier

• Channels: 3 channels (1 LF, 1 MF, 1 HF)

• Power: 600 W RMS / 1200 W program / 1800 W peak

• Cooling: Convection with internal fan

• Power supply: Auto-switching AC 100-240 V, 50/60 Hz

• Protection: Thermal, DC offset, output short circuit

Processor

• DSP: 64-bit multimode processor with Milan

• Sample rate: 96 kHz

• Limiter: Multiband compressor and peak limiter

• Processing filters: FIR linear phase and 10-band IIR

Input / Output

• Analog signal input/output: 3-pin XLR

• Power connection: IP65 locking power input/output

• Network: Locking RJ45 input/output for control and Milan

• Controls: Input attenuation (-15 dB to +6 dB), LF coupling (8 presets), HF compensation (8 presets), system test and reset button

• Special features: Frontal LED identification system, inclinometer

Power Linking / Draw

• Power linking: Up to 6 speaker cabinets @ 208 V / 20 A

• Power draw (1/8 power): 2.6 A / 198 W

Remote Control

• Full system control and monitoring via AKRO Command software

• Compatible with macOS and Windows (32-bit / 64-bit)

Construction

• Housing: Multiplex plywood with Polyurea coating

• Housing design: Trapezoidal

• Handles: 4 integrated handles (1 per side, 2 on rear)

• Rain cover: Included and permanently attached

• Rigging: Integrated 3-point rigging hardware

Dimensions / Weight

• Dimensions (W x H x D): 760 x 230 x 465 mm

• Weight: 28.6 kg

Optional Accessories

• ATC328 transport cart for up to 5 x ATL328

• CVR328 protective cover for 4 x ATL328

• AFB328 array flybar / ground stack base

• ASB328 stabilizer bars for ATC328 (2-piece set)

• MPC IP65 locking power cable (various lengths)

• CAT6IP10 UTP network cable (various lengths)

• AC-PRO XLR audio cable (various lengths)

Specifications subject to change without notice
